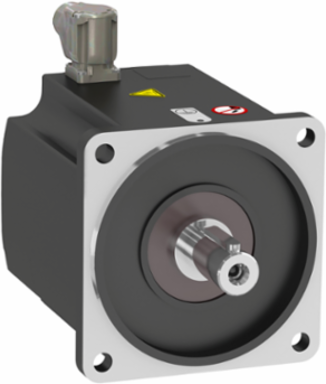

Schneider Electric BMP1401F3NA2A synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC
Schneider Electric BMP1401F3NA2A synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC
- MPN: BMP1401F3NA2A
- PPN: SCH-BMP1401F3NA2A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2784.15/ EA
Description
synchronous motor - BMP - 480 VAC - 2.2 kW - IP65 - IEC
Specifications
Specifications
- Product Compatibility
- variable speed drive ATV32 1.1 kW 200 V single phase || variable speed drive ATV32 1.5 kW 200 V single phase || variable speed drive ATV32 2.2 kW 400 V three phase || variable speed drive ATV320 1.1 kW 200...240 V single phase || variable speed drive ATV320 1.5 kW 200...240 V single phase || variable speed drive ATV320 2.2 kW 380...500 V three phase
- Maximum Mechanical Speed
- 3600 rpm
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Nominal Speed
- 1500 rpm ATV32 1.1 kW 200 V single phase || 1500 rpm ATV32 1.5 kW 200 V single phase || 3000 rpm ATV32 2.2 kW 400 V three phase || 1500 rpm ATV320 1.1 kW 200 V single phase || 1500 rpm ATV320 1.5 kW 200 V single phase || 3000 rpm ATV320 2.2 kW 400 V three phase
- Holding Brake
- without
- Nominal Torque
- 7 N.m ATV32 1.1 kW 200 V single phase || 7 N.m ATV32 1.5 kW 200 V single phase || 6.37 N.m ATV32 2.2 kW 400 V three phase || 7 N.m ATV320 1.1 kW 200 V single phase || 7 N.m ATV320 1.5 kW 200 V single phase || 6.37 N.m ATV320 2.2 kW 400 V three phase
Nominal Output Power1100 W ATV32 1.1 kW 200 V single phase || 1100 W ATV32 1.5 kW 200 V single phase || 2000 W ATV32 2.2 kW 400 V three phase || 1100 W ATV320 1.1 kW 200 V single phase || 1100 W ATV320 1.5 kW 200 V single phase || 2000 W ATV320 2.2 kW 400 V three phase
Mounting Supportinternational standard flange
Shaft Endkeyed
Electrical Connectionrotatable right-angled connector
Product Or Component Typesynchronous motor
Device Short NameBMP
Complementary
- Number Of Mounting Holes
- 4
- Key Width
- 8 mm
- Mounting Holes Diameter
- 11 mm
- Type Of Cooling
- natural convection
- Maximum Operating Frequency
- 150 Hz ATV32 1.1 kW 200 V single phase || 150 Hz ATV32 1.5 kW 200 V single phase || 300 Hz ATV32 2.2 kW 400 V three phase || 150 Hz ATV320 1.1 kW 200 V single phase || 150 Hz ATV320 1.5 kW 200 V single phase || 300 Hz ATV320 2.2 kW 400 V three phase
- Rotor Inertia
- 16.46 kg.cm²
- Maximum Axial Force Fa
- 0.2 x Fr
- Stator Resistance
- 0.7 Ohm 40 °C
- Nominal Operating Frequency
- 125 Hz ATV32 1.1 kW 200 V single phase || 125 Hz ATV32 1.5 kW 200 V single phase || 250 Hz ATV32 2.2 kW 400 V three phase || 125 Hz ATV320 1.1 kW 200 V single phase || 125 Hz ATV320 1.5 kW 200 V single phase || 250 Hz ATV320 2.2 kW 400 V three phase
- Network Number Of Phases
- three phase
- Maximum Current Irms
- 10.4 A ATV32 1.1 kW 200 V single phase || 12 A ATV32 1.5 kW 200 V single phase || 8.3 A ATV32 2.2 kW 400 V three phase || 10.4 A ATV320 1.1 kW 200 V single phase || 12 A ATV320 1.5 kW 200 V single phase || 8.3 A ATV320 2.2 kW 400 V three phase
- Torque Constant
- 1.55 N.m/A 40 °C
- Stator Inductance
- 6.23 mH for q-axis winding 40 °C || 5.18 mH for d-axis winding 40 °C
- [Us] Rated Supply Voltage
- 480 V
Shaft Diameter24 mm
Minimum Operating Frequency13 Hz ATV32 1.1 kW 200 V single phase || 13 Hz ATV32 1.5 kW 200 V single phase || 25 Hz ATV32 2.2 kW 400 V three phase || 13 Hz ATV320 1.1 kW 200 V single phase || 13 Hz ATV320 1.5 kW 200 V single phase || 25 Hz ATV320 2.2 kW 400 V three phase
Circle Diameter Of The Mounting Holes165-165 mm
Maximum Radial Force Fr1930 N 1000 rpm || 1530 N 2000 rpm || 1340 N 3000 rpm
Number Of Motor Stacks1
Number Of Motor Poles5
Centring Collar Depth3.5 mm
Range CompatibilityAltivar 32 || Altivar Machine ATV320
Shaft Length50 mm
Length152 mm
Net Weight8 kg
Centring Collar Diameter130 mm
Motor Flange Size140 mm
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
