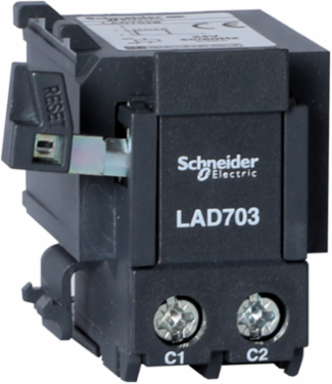

Schneider Electric LAD703F TeSys Deca Thermal Overload Relay with Remote Electrical Stop, 110V AC/DC
- MPN: LAD703F
- PPN: SCH-LAD703F
CAD
$130.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380 and D313L-D365L. It provides a 110V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on.
Features
- The LAD703F is specifically engineered to enable the direct attachment of LR2D or LRD3 thermal overload relays to LC1D09 through LC1D38 TeSys D contactors. By eliminating the need for separate DIN rail space or complex wiring runs between components, you achieve a more compact, professional, and organized enclosure layout.
- This bracket functions as a terminal block adapter, allowing you to mount your LRD overload relay independently on a standard 35mm DIN rail or via screw fixing. This flexibility is essential for custom motor control centers where the relay and contactor cannot be physically coupled, ensuring you can still provide precise motor protection exactly where it's needed.
- Designed for the rigors of heavy-duty manufacturing, the LAD703F maintains a gas-tight, vibration-proof connection between the power leads and the relay. This prevents terminal heating and "nuisance tripping" caused by loose wires, significantly reducing downtime and maintenance overhead in high-vibration applications like pumping, crushing, or HVAC systems.
- As a genuine Schneider Electric TeSys D accessory, this adapter is fully compliant with IEC 60947-4-1 and UL/CSA standards. Utilizing authentic components ensures your motor starter assemblies maintain their short-circuit current ratings (SCCR) and overall system reliability, avoiding the risks associated with third-party, non-certified mounting hardware
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Complementary Attributes
- Maximum Inrush Power In Va
- 100 VA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Circuit Voltage 4
- 110 V
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz, 110 V DC
- Local Publishable Date
- 2026-07-07
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LAD
- Inrush Power In W
- 0-100 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Sustainable Packaging
- Yes
- Accessory / Separate Part Category
- electrical accessory
- Package Weight(Lbs)
- 105.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Control Circuit Voltage 4 Control Circuit Voltage110 V
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLAD
Energy Efficiency OptimizedFalse
Maximum Inrush Power In Va100 VA
Product Or Component Typeelectrical remote stop
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Product CompatibilityLR3D01...D35, LR3D313...LR3D365, LRD01...35, LRD313...LRD365, LR9G
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- electrical remote stop
ETIM
- ETIM 8
- EC002027
ETIM 9EC002027
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
