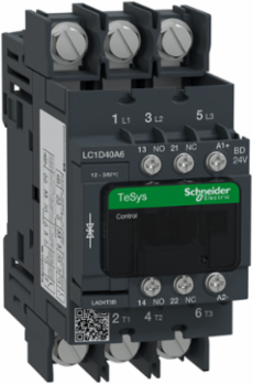

Schneider Electric LC1D40A6BD TeSys Deca Contactor 3P 40A 24V DC Coil 55mm Width
- MPN: LC1D40A6BD
- PPN: SCH-LC1D40A6BD
CAD
$566.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.04 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France

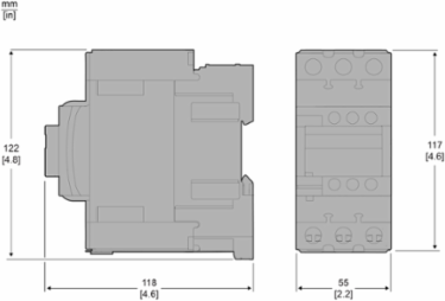

Depth120 mm
Complementary Attributes
- Maximum Horse Power Rating
- 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors10 hp at 230/240 V AC 50/60 Hz for 3 phase motors30 hp at 575/600 V AC 50/60 Hz for 3 phase motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phase motors3 hp at 115 V AC 50/60 Hz for 1 phase motors, 30 hp at 460/480 V AC 50/60 Hz for 3 phase motors
- Control Circuit Voltage Limits
- 0.1...0.3 Uc (-40-70 °C):drop-out DC0.75...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Control Circuit TypeDC standard
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 0.7 Mcycles 60 A AC-1 <= 440 V, 1.5 Mcycles 40 A AC-3 <= 440 V, 1.5 Mcycles 40 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor closed 15 Gn for 11 ms), shocks contactor open 10 Gn for 11 ms)
- Mounting Support
- rail, plate
- Range
- TeSys, TeSys Deca
- Utilisation Category
- AC-3, AC-3e, AC-1, AC-4
- Certificate Agency
- CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
- [Ui] Rated Insulation Voltage
- signalling circuit 600 V CSA, signalling circuit 600 V UL, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, power circuit 690 V IEC 60947-4-1
- Non-overlap Time
- 1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.2994321372133595, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 4.573365611546233
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503009EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 1.5 mOhm - Ith 60 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Device Short Name
- LC1D
- Inrush Power In W
- 19-19 W 20 °C)
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- THIEC 60068-2-30
- Returnability
- Yes
- Signalling Circuit Frequency
- 25...400 Hz
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 79 kg CO2 eq.
- Connections Terminals
- lugs-ring terminals
- Pep Code
- ENVPEP1503009EN
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 62
- Width Nominal
- 55 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
- Hold-in Power Consumption In W
- 7.4-7.4 W 20 °C
- Package Weight(Lbs)
- 905.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationresistive load, motor control
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw18.5 kW at 380/400 V AC 50/60 Hz (AC-3e), 22 kW at 415/440 V AC 50/60 Hz (AC-3e), 22 kW at 500 V AC 50/60 Hz (AC-3e), 30 kW at 660/690 V AC 50/60 Hz (AC-3e), 11 kW at 220/230 V AC 50/60 Hz (AC-3)18.5 kW at 380/400 V AC 50/60 Hz (AC-3)22 kW at 415/440 V AC 50/60 Hz (AC-3), 22 kW at 500 V AC 50/60 Hz (AC-3)30 kW at 660/690 V AC 50/60 Hz (AC-3), 11 kW at 220/230 V AC 50/60 Hz (AC-3e), 9 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole2.4 W AC-35.4 W AC-1, 2.4 W AC-3e
Tightening Torquecontrol circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5, control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5, power circuit 6 N.m lugs-ring terminals hexagonal 10 mm M6control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage24 V
[Ie] Rated Operational Current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Connections - Terminalslugs-ring terminals, control circuit: lugs-ring terminals - external diameter: 8 mmpower circuit: lugs-ring terminals - external diameter: 16.5 mm
Carbon Footprint Of The Distribution Phase [A4]0.42873297932635546, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.05584611554662137
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]72 kg CO2 eq., 72.48743071365675
Local Publishable Date2026-04-15
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Contact CompatibilityM4
Fire Resistance850 °C IEC 60695-2-1
Mechanical Durability10 Mcycles
Operating Time50 ±15 % ms closing20 ±20 % ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.2.4
Time Constant34 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current40 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh805.92
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal122 mm
[Icw] Rated Short-time Withstand Current320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage24 V24 V DC
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1503009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1503009EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Climatic WithstandIACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint78.84480755728931
Environmental DisclosureENVPEP1503009EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Permissible Ambient Air Temperature Around The Device-40-60 °C-40-60 °C60-70 °C with derating
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2026-03-17
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
