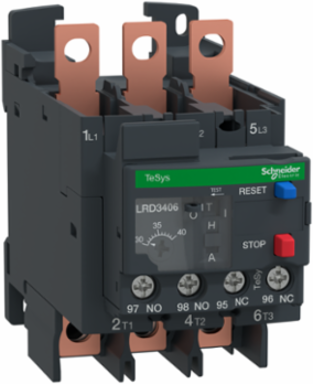

Schneider Electric LRD3406 TeSys Deca Thermal Overload Relay 30-40A, IP20, Class 10A
- MPN: LRD3406
- PPN: SCH-LRD3406
CAD
$243.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys LRD thermal overload relay, 40A/690V, thermal setting range 30-40A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth123 mm
Important Information Attributes
- Associated Fuse Rating
- 4 A gG for signalling circuit, 4 A BS for signalling circuit
- Mounting Support
- plate, with specific accessories, rail, with specific accessories, under contactor
- Permissible Current
- 0.95 A 380 V AC-15 signalling circuit, 0.06 A 440 V DC-13 signalling circuit
- Range
- TeSys, TeSys Deca
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, DNV-GL, RMRS, EU-RO MR, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable endpower circuit lugs-ring terminals
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.6878801581434929
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.3175573775817813
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1101001
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Compatibility Code
- LRD
- Control Type
- Red push-button stopBlue push-button reset
- Dielectric Strength
- 1.89 kV 50 Hz IEC 60947-1
- Network Frequency
- 0...400 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Relay Application
- motor protection
- Software Version
- v6.1
- Thermal Overload Class
- class 10A IEC 60947-4-1
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminalspower circuit 6 N.m lugs-ring terminals M6
- Tripping Threshold
- 1.14 +/- 0.06 Ir IEC 60947-4-1
- R Thermal Protection Adj Range
- 30-40 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 28.3824
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 70 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A signalling circuit
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Package Weight(Lbs)
- 365.000 g
- Warranty (In Months)
- 18
Mechanical Robustnessshocks15 Gn for 11 ms IEC 60068-2-7, vibrations4 gn IEC 60068-2-6
Network TypeDC, AC
Product NameTeSys LRD, TeSys Deca
Temperature Compensation-20-60 °C, -20-60 °C
[Ui] Rated Insulation Voltagepower circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.08769004547670689, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.04694946427851445, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 kg CO2 eq., 1.8963357840065684
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeRelay, Control & Measurement - Protection relay
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Product Kit IdentifierN
Connection Pitch17.5 mm
Device Short NameLRD
Flame RetardanceV1 conforming to UL 94
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Typedifferential thermal overload relay
ReturnabilityNo
Sustainable PackagingYes
Thermal Protection Adjustment Range30-40 A
Total Lifecycle Carbon Footprint5 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1101001EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %63
Width Nominal55 mm
[Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-70 °C, -60-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1101001
- Environmental Disclosure
- ENVPEP1101001EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Operation-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product CompatibilityLC1D50A, LC1D40A, LC1D65A
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint5.036412829487063
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1101001EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- differential thermal overload relay
ETIM
- ETIM 8
- EC000106
ETIM 9EC000106
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
