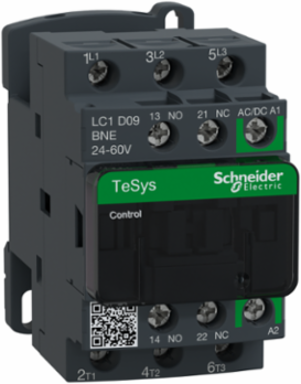

Schneider Electric LC1D09BNE TeSys Deca Contactor 3P 9A 24-60V AC/DC with Screw Clamp Terminals

MPN: LC1D09BNE
PPN: SCH-LC1D09BNE

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$227.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a low consumption 24-60V AC/DC coil with electronic control for direct PLC output connection, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.81 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Depth	86 mm

Complementary Attributes

Control Circuit Type	AC/DC 50/60 Hz AC/DC electronic, AC/DC 50/60 Hz AC/DC electronic
Irms Rated Making Capacity	250 A at 440 V for power circuit conforming to IEC 60947140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Maximum Motor Phase Current	9 A
Minimum Switching Current	5 mA for signalling circuit
Rated Breaking Capacity	250 A at 440 V for power circuit conforming to IEC 60947

Control Circuit Voltage Limits	<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC<= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, <= 0.1 Uc (-40-70 °C):drop-out AC/DC, 0.85...1.1 Uc (-40-60 °C):operational AC0.8...1.1 Uc (-40-60 °C):operational DC1...1.1 Uc (60-70 °C):operational AC/DC
Maximum Horse Power Rating	2 hp at 230/240 V AC 60 Hz for 3 phase motors0.33 hp at 115 V AC 60 Hz for 1 phase motors1 hp at 230/240 V AC 60 Hz for 1 phase motors, 2 hp at 200/208 V AC 60 Hz for 3 phase motors5 hp at 460/480 V AC 60 Hz for 3 phase motors7.5 hp at 575/600 V AC 60 Hz for 3 phase motors
Maximum Operating Rate	3600 cyc/h at 60 °C
Minimum Switching Voltage	17 V for signalling circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contactor Application	motor control, resistive load
Insulation Resistance	> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw	4 kW at 380...400 V AC 50 Hz (AC-3e), 4 kW at 415 V AC 50 Hz (AC-3e), 4 kW at 440 V AC 50 Hz (AC-3e), 5.5 kW at 500 V AC 50 Hz (AC-3e), 5.5 kW at 660...690 V AC 50 Hz (AC-3e)2.2 kW at 220...230 V AC 50 Hz (AC-3)4 kW at 380...400 V AC 50 Hz (AC-3), 4 kW at 415 V AC 50 Hz (AC-3), 4 kW at 440 V AC 50 Hz (AC-3)5.5 kW at 500 V AC 50 Hz (AC-3), 5.5 kW at 660...690 V AC 50 Hz (AC-3), 2.2 kW at 220...230 V AC 50 Hz (AC-3e)
Power Dissipation Per Pole	1.56 W AC-10.2 W AC-3, 0.2 W AC-3e
Utilisation Category	AC-1, AC-3, AC-3e
Certificate Agency	CCC, CSA, EAC, UL, KC, DNV-GL, LROS (Lloyds register of shipping), UKCA
[Ie] Rated Operational Current	9 A (at <60 °C) at <= 440 V AC-3 for power circuit25 A (at <60 °C) at <= 440 V AC-1 for power circuit, 9 A (at <60 °C) at <= 440 V AC-3e for power circuit
Connections - Terminals	control circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endcontrol circuit: 2 1-4 mm² - cable stiffness: solidpower circuit: 2 1-4 mm² - cable stiffness: flexible without cable endpower circuit: 1 1-4 mm² - cable stiffness: flexible with cable endpower circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: 1 1-4 mm² - cable stiffness: solid, power circuit: 2 1-4 mm² - cable stiffness: solidscrew clamp terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Carbon Footprint Of The Distribution Phase [A4]	0.11024017747820003, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.041152029342718374
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	4 kg CO2 eq., 4.38963157894737
Local Publishable Date	2026-07-07
Stocking Flag	Y
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Associated Fuse Rating	10 A gG for signalling circuit conforming to IEC 60947-5-125 A gG at <= 690 V coordination type 1 for power circuit20 A gG at <= 690 V coordination type 2 for power circuit
Coil Technology	built-in bidirectional peak limiting
Device Short Name	LC1D
Flame Retardance	V1 conforming to UL 94
Inrush Power In Va	15-15 VA 50/60 Hz (at 20 °C)
Mechanical Durability	15 Mcycles
Operating Time	45...55 ms closing20...90 ms opening
Pole Contact Composition	3 NO
Product Or Component Type	contactor
Returnability	Yes
Signalling Circuit Frequency	25...400 Hz
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Inf Motor Phase Current	9 A
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3 NO, a control circuit voltage 250V, a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	65.7
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	77 mm
[Ith] Conventional Free Air Thermal Current	10 A (at 60 °C) for signalling circuit25 A (at 60 °C) for power circuit
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1signalling circuit 690 V IEC 60947-1
Hold-in Power Consumption In Va	0.9-0.9 VA 50/60 Hz (at 20 °C)
Halogen-free Status	Halogen free plastic parts and cables product
Package Weight(Lbs)	395.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Electrical Durability	2.4 Mcycles 8 A AC-3 <= 440 V, 0.6 Mcycles 25 A AC-1 <= 440 V, 2.4 Mcycles 8 A AC-3e <= 440 V
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz)vibrations contactor closed 4 Gn, 5...300 Hz)shocks contactor open 10 Gn for 11 ms), shocks contactor closed 15 Gn for 11 ms)
Mounting Support	rail, plate
Tightening Torque	power circuit 1.7 N.m screw clamp terminals Philips No 2control circuit 1.7 N.m screw clamp terminals pozidriv No 2, control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2, power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, power circuit 1.7 N.m screw clamp terminals pozidriv No 2
Control Circuit Voltage	24...60 V
[Icw] Rated Short-time Withstand Current	100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit30 A 40 °C - 10 min for power circuit61 A 40 °C - 1 min for power circuit105 A 40 °C - 10 s for power circuit, 210 A 40 °C - 1 s for power circuit
[Uc] Control Circuit Voltage	24...60 V, 24...60 V AC 50/60 Hz, 24...60 V DC
Non-overlap Time	1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.632401664023421, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 3.05329395824414
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1609001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1922
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Impedance	2.5 mOhm - Ith 25 A 50 Hz for power circuit
Compatibility Code	LC1D
Fire Resistance	850 °C IEC 60695-2-1
Heat Dissipation	0.6-0.6 W at 50/60 Hz
Inrush Power In W	14-14 W 20 °C)
Number Of Poles	3P
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	TeSys Deca Advanced
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	8 kg CO2 eq.
Connections Terminals	screw clamp terminals
Pep Code	ENVPEP1609001EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	70
Width Nominal	45 mm
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Hold-in Power Consumption In W	0.6-0.6 W 20 °C
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	8.22671940803585
Environmental Disclosure	ENVPEP1609001EN
Halogen Content Performance	Halogen free plastic parts & cables product
Operating Altitude	0...9842.52 ft (0...3000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed2-2016 03 29

Climatic Withstand	IACS E10 exposure to damp heat, IEC 60947-1 Annex Q category D exposure to damp heat
Halogene Performance	Halogen free plastic parts & cables product
Mercury Free	Yes
Circularity Profile	ENVEOLI1609001EN
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 front face IEC 60529
Packaging Made With Recycled Cardboard	Yes
Permissible Ambient Air Temperature Around The Device	-40-60 °C-40-60 °C60-70 °C with derating
Pep Code	ENVPEP1609001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
