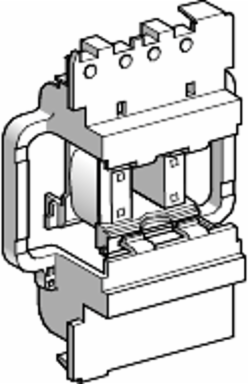

Schneider Electric LX1D8Q7 TeSys D Contactor Coil 380V AC for 115/150A, Green Premium
- MPN: LX1D8Q7
- PPN: SCH-LX1D8Q7
CAD
$236.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys D replacement AC coil 380V 50/60Hz for TeSys D contactors. To be used with 3-pole and 4-pole contactors LC1 D115, LC1D150. It operates in the voltage limits 0.8-1.15 Uc and environments until 55°C. Coil with integral suppression device fitted as standard. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Inductance Of Closed Circuit
- 482.42 H
- [Uc] Control Circuit Voltage
- 380 V AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz
- Product Or Component Type
- contactor coil
- Device Short Name
- LX1D8
Average Resistance21011 Ohm 20 °C
Maximum Operating Rate1200 cyc/h 60 °C
Mechanical Durability8 Mcycles
Product CompatibilityLC1D115 || LC1D150
RangeTeSys
Complementary
- Coil Technology
- without built-in suppressor module
- Hold-In Power Consumption In Va
- 2-18 VA 60 Hz cos phi 0.9 (at 20 °C) || 2-18 VA 50 Hz cos phi 0.9 (at 20 °C)
- Heat Dissipation
- 3-4.5 W 50/60 Hz
Control Circuit Voltage Limitsdrop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C) || operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
Inrush Power In Va280-350 VA 60 Hz cos phi 0.9 (at 20 °C) || 280-350 VA 50 Hz cos phi 0.9 (at 20 °C)
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
