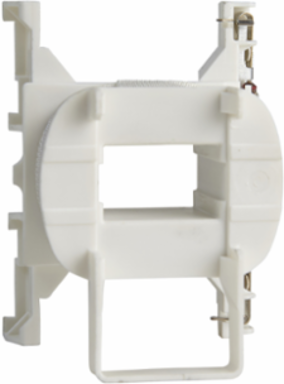

Schneider Electric LXD1J7 TeSys Deca Contactor Coil 12V AC 50/60Hz for 9-38 A Contactors
- MPN: LXD1J7
- PPN: SCH-LXD1J7
CAD
$102.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys D replacement coil 12V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
| Average Resistance | 1.33 Ohm 20 °C |
|---|---|
| Control Circuit Type | AC 50/60 Hz |
| Range | TeSys |
| Maximum Operating Rate | 3600 cyc/h 60 °C |
| Product Compatibility | LC1DT20...DT40 || LC1D09...D38 || CAD |
| [Uc] Control Circuit Voltage | 12 V AC 50/60 Hz |
|---|---|
| Product Or Component Type | contactor coil |
| Inductance Of Closed Circuit | 0.05 H |
| Mechanical Durability | 15 Mcycles |
| Device Short Name | LXD1 |
Complementary
| Control Circuit Voltage Limits | drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) |
|---|---|
| Coil Technology | without built-in suppressor module |
| Heat Dissipation | 2-3 W 50/60 Hz |
| Inrush Power In Va | 70-70 VA 60 Hz cos phi 0.75 (at 20 °C) || 70-70 VA 50 Hz cos phi 0.75 (at 20 °C) |
|---|---|
| Hold-In Power Consumption In Va | 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C) || 7-7 VA 50 Hz cos phi 0.3 (at 20 °C) |
Environment
| Ambient Air Temperature For Operation | -5-60 °C |
|---|
| Net Weight | 0.07 kg |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1501004 |
| Pvc Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| Circularity Profile | ENVEOLI1501004 |
