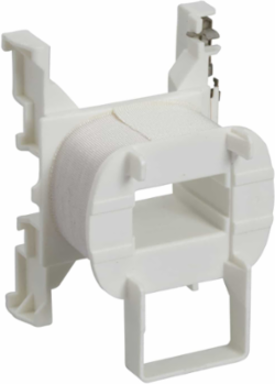

Schneider Electric LXD1N7 TeSys Deca Contactor Coil, 415V AC, 9-38A, 0.07 kg

MPN: LXD1N7
PPN: SCH-LXD1N7
UNSPSC: 39121529

$117.98

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This contactor coil from Schneider Electric is designed to provide reliable control in various industrial applications. Operating at 415V AC, it is suitable for current ratings ranging from 9 to 38A, making it versatile enough to handle a wide array of tasks within automation and control systems. Weighing just 0.07 kg, its lightweight design makes it an excellent choice for environments where space and efficiency are crucial. With the TeSys Deca series, users can expect robust performance and dependable operation, essential for maintaining smooth functionality in starters and contactor systems.

Features

Spare coil for Deca contactor
New modern look & feel of all machines
Easier to install.
Digital customer experience for technical documents

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia

Complementary Attributes

Control Circuit Voltage Limits	drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Maximum Operating Rate	3600 cyc/h 60 °C

Control Circuit Type	AC 50/60 Hz
Uc Control Circuit Voltage	415 V AC 50/60 Hz

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Inrush Power In Va	70-70 VA 60 Hz cos phi 0.75 (at 20 °C), 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Publishable Date	2026-06-27
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1501004
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2538
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	1694 Ohm 20 °C
Device Short Name	LXD1
Inductance Of Closed Circuit	65 H
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	TeSys
Returnability	No
Nbr. Of Units In Pkg.	1
Hold In Power Consumption In Va	7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)7-7 VA 50 Hz cos phi 0.3 (at 20 °C)

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Traceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Coil Technology	without built-in suppressor module
Heat Dissipation	2-3 W 50/60 Hz
Mechanical Durability	15 Mcycles
Product Or Component Type	contactor coil
Range Of Product	TeSys Deca
Sustainable Packaging	Yes
Customs Code	8504504000
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility	LC1DT20...DT40, LC1D09...D38, CAD
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI1501004
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation	-5-60 °C, -5-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1501004EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1501004EN
