TeSys Deca Contactor Coil, 440V AC, 15 Mcycles, 0.07 kg

Documentation & Downloads

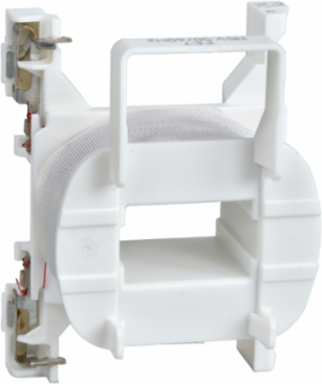

Schneider Electric LXD1R7 TeSys Deca Contactor Coil, 440V AC, 15 Mcycles, 0.07 kg

MPN: LXD1R7
PPN: SCH-LXD1R7

CAD

$117.98

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

The TeSys Deca Contactor Coil by Schneider Electric is engineered for efficiency in automation and control applications. Operating at 440V AC and designed for an impressive 15 million cycles, this coil provides reliable performance for various starter and contactor setups. Weighing in at a mere 0.07 kg, it integrates seamlessly into your systems, ensuring swift and dependable operation. With its robust design, this coil is an essential component for maintaining the longevity and reliability of your equipment in demanding environments.

Documentation & Downloads

Specifications

Additional

Control Circuit Voltage: 440 V AC 50/60 Hz

Control Circuit Type: AC 50/60 Hz

Hold-in Power Consumption: 7–7.5 VA 50/60 Hz cos φ 0.3 (20 °C)

Inductance of Closed Circuit: 73 H

Maximum Operating Rate: 3600 cyc/h at 60 °C

Net Weight: 0.07 kg

Compliance: Pro-active China RoHS declaration, Pro-active EU RoHS compliance, REACH free of SVHC, RoHS, China RoHS

Product Compatibility: LC1DT20...DT40, LC1D09...D38, CAD

Coil Technology: without built-in suppressor module

Sustainable Offer Status: Green Premium product

Control Circuit Voltage Limitsdrop-out: 0.3–0.6 Uc at 50/60 Hz (<60 °C); operational: 0.8–1.1 Uc at 50 Hz, 0.85–1.1 Uc at 60 Hz (<60 °C)

Inrush Power70 VA 50/60 Hz cos φ 0.75 (20 °C)

Mechanical Durability15 Mcycles

Heat Dissipation2–3 W 50/60 Hz

Average Resistance1993 Ohm at 20 °C

MaterialPVC Free, Mercury Free, Toxic Heavy Metal Free

RangeTeSys

Device Short NameLXD1

Environmental DisclosureENVPEP1501004
