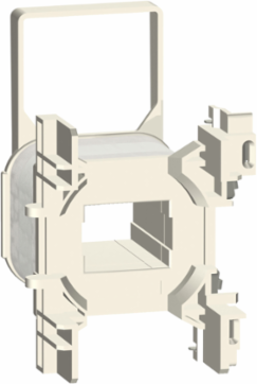

TeSys D Contactor Coil, 110V AC 50/60Hz, Compatible with 40-65A Contactors
Schneider Electric

Schneider Electric LXD3F7 TeSys D Contactor Coil, 110V AC 50/60Hz, Compatible with 40-65A Contactors

  • MPN: LXD3F7
  • PPN: SCH-LXD3F7

CAD

$190.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

TeSys Deca replacement coil 110V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D40A to D65A and LC1 DT60A, DT80A. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Indonesia

Complementary Attributes

Control Circuit Voltage Limits
drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Maximum Operating Rate
3600 cyc/h 60 °C
Control Circuit TypeAC 50/60 Hz

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Inrush Power In Va
160-160 VA 60 Hz cos phi 0.75 (at 20 °C), 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Traceability
No
Weee Scope
Out
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Coil Technology
without built-in suppressor module
Heat Dissipation
4-5 W 50/60 Hz
Mechanical Durability
6 Mcycles
Product Or Component Type
contactor coil
Range Of Product
TeSys Deca
Sustainable Packaging
No
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8504504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Hold-in Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C), 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
Local Publishable Date2026-07-15
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance42.28 Ohm 20 °C
Device Short NameLXD3
Inductance Of Closed Circuit2.5 H
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
Package Weight(Lbs)123.000 g
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product Compatibility
LC1D40A...D65A, LC1DT60A, LC1DT80A
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes

General Attributes

Product Or Component Type
contactor coil
Range Of ProductTeSys Deca

ETIM

ETIM 8
EC001043
ETIM 9EC001043

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
