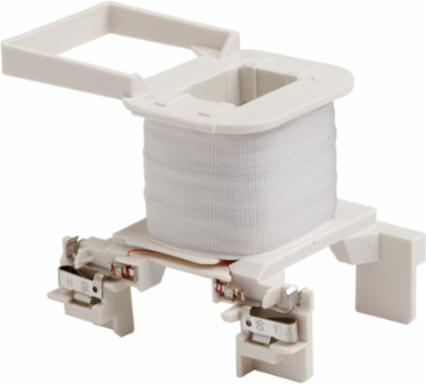

Schneider Electric LXD3M7 Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40…65A contactor

MPN: LXD3M7
PPN: SCH-LXD3M7

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$190.51/ EA

Qty:

Loading add to cart quantity...

Description

Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40…65A contactor

Specifications

Environment

Ambient Air Temperature For Operation: -5-60 °C

Net Weight0.07 kg

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)

Complementary

Control Circuit Voltage Limits: drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Coil Technology: without built-in suppressor module

Heat Dissipation: 4-5 W 50/60 Hz

Inrush Power In Va160-160 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-In Power Consumption In Va15-15 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)

Specifications

Average Resistance: 182 Ohm 20 °C

Control Circuit Type: AC 50/60 Hz

Range: TeSys

Maximum Operating Rate: 3600 cyc/h 60 °C

Product Compatibility: LC1D40A...D65A || LC1DT80A || LC1DT60A

[Uc] Control Circuit Voltage220 V AC 50/60 Hz

Product Or Component Typecontactor coil

Inductance Of Closed Circuit10 H

Mechanical Durability6 Mcycles

Device Short NameLXD3
