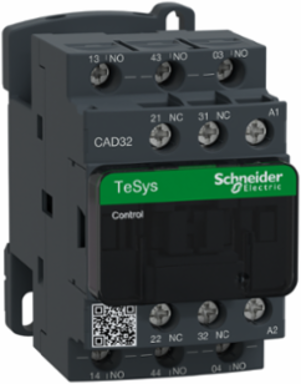

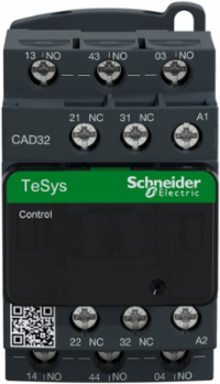

Schneider Electric CAD32FC7 TeSys Deca Control Relay 3NO+2NC, 10A/690V, 127V AC 50/60Hz
- MPN: CAD32FC7
- PPN: SCH-CAD32FC7
CAD
$113.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 127V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France
Depth84 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1250 A DC IEC 60947-5-1
- Minimum Switching Current
- 5 mA
Control Circuit TypeAC 50/60 Hz
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Range
- TeSys, TeSys Deca
- Utilisation Category
- AC-14, DC-13, AC-15
- [Ue] Rated Operational Voltage
- <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
- Connections - Terminals
- screw clamp terminals 2 1-2.5 mm²flexible with cable endscrew clamp terminals 2 1-4 mm²solid without cable endscrew clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2688271654154445, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4052974453589133
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1501004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 10 A gG conforming to IEC 60947-5-1
- Contactor Application
- control circuit
- Inrush Power In Va
- 70-70 VA 50 Hz (at 20 °C)
- Mechanical Durability
- 30 Mcycles
- Pole Contact Composition
- 3 NO + 2 NC
- Product Name
- TeSys CAD
- Protective Treatment
- TH IEC 60068
- Returnability
- No
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 21
- 127 V AC 50/60 Hz
- Pep Code
- ENVPEP1501004EN
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 66
- Width Nominal
- 45 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
Tightening Torque1.7 N.m screw clamp terminals Philips No 2, 1.7 N.m screw clamp terminals flat Ø 6 mm, 1.7 N.m screw clamp terminals pozidriv No 2
Certificate AgencyCB, CCC, UL, CSA, EAC, CE, UKCA
[Ui] Rated Insulation Voltage600 V UL, 600 V CSA690 V IEC 60947-5-1
Non-overlap Time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Carbon Footprint Of The Installation Phase [A5]0.09473546449819852, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.364183683872902
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeCAD
Device Short NameCAD
Insulation Resistance> 10 MOhm> 10 MOhm
Operating Time12...22 ms coil energisation and NO closing4...12 ms coil de-energisation and NO opening4...19 ms coil energisation and NC opening6...17 ms coil de-energisation and NC closing
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecontrol relay
Range Of ProductTeSys D control relay
Software Versionv6.2.4
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Pole Contact Comp3 NO + 2 NC
Connections Terminals 55 Connections Terminalsscrew clamp terminals
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh170.82
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal77 mm
[Icw] Rated Short-time Withstand Current100 A - 1 s120 A - 500 ms140 A - 100 ms
[Uc] Control Circuit Voltage127 V AC 50/60 Hz
Hold-in Power Consumption In Va8-8 VA 50 Hz (at 20 °C)
Package Weight(Lbs)300.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-60 °C-40-60 °C60-70 °C with derating
- Environmental Disclosure
- ENVPEP1501004EN
- Ip Degree Of Protection
- IP2X front face VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint18.13304375914546
Circularity ProfileENVEOLI1501004
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1501004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys D control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
