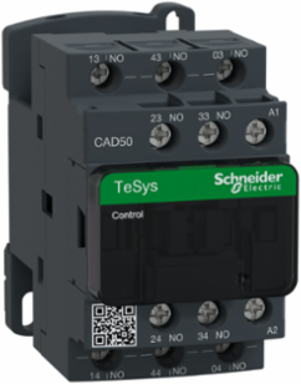

Schneider Electric CAD50F7 TeSys Deca Control Relay, 5NO, 110V AC, 10A, 45mm Width
- MPN: CAD50F7
- PPN: SCH-CAD50F7
CAD
$113.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, Singapore
Depth84 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz, 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz
- Minimum Switching Current
- 5 mA
Irms Rated Making Capacity140 A AC IEC 60947-5-1, 250 A DC IEC 60947-5-1
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27, shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Operating Time
- 12...22 ms coil energisation and NO closing, 4...12 ms coil de-energisation and NO opening
- Tightening Torque
- 1.7 N.m screw clamp terminals Philips No 2, 1.7 N.m screw clamp terminals flat Ø 6 mm, 1.7 N.m screw clamp terminals pozidriv No 2
- Certificate Agency
- CB, CCC, UL, CSA, EAC, CE, UKCA
- [Ue] Rated Operational Voltage
- <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
- Connections - Terminals
- screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 2 1-4 mm²solid without cable endscrew clamp terminals 1 1-4 mm²flexible without cable end, screw clamp terminals 2 1-4 mm²flexible without cable end, screw clamp terminals 1 1-4 mm²flexible with cable end, screw clamp terminals 1 1-4 mm²solid without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2688271654154445, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.4052974453589133
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1501004
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- CAD
- Device Short Name
- CAD
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Pole Contact Composition
- 5 NO
- Product Name
- TeSys CAD
- Protective Treatment
- TH IEC 60068
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 21
- 110 V AC 50/60 Hz
- Pep Code
- ENVPEP1501004EN
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential, In %
- 66
- Width Nominal
- 45 mm
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- Hold-in Power Consumption In Va
- 8-8 VA 50 Hz (at 20 °C)
- Package Weight(Lbs)
- 360 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
RangeTeSys, TeSys Deca
Utilisation CategoryDC-13, AC-15, AC-14
[Icw] Rated Short-time Withstand Current100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms
[Ui] Rated Insulation Voltage600 V UL, 600 V CSA, 690 V IEC 60947-5-1
Non-overlap Time1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.09473546449819852
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]15 kg CO2 eq., 15.364183683872902
Local Publishable Date2025-07-09
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG conforming to IEC 60947-5-1
Contactor Applicationcontrol circuit
Inrush Power In Va70-70 VA 50 Hz (at 20 °C)
Mechanical Durability30 Mcycles
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typecontrol relay
Range Of ProductTeSys D control relay
Software Versionv6.2.4
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Pole Contact Comp5 NO
Connections Terminals 55 Connections Terminalsscrew clamp terminals
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh170.82
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal77 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 18.13304375914546
- Environmental Disclosure
- ENVPEP1501004EN
- Ip Degree Of Protection
- IP2X front face VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-40-60 °C-40-60 °C, 60-70 °C with derating
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI1501004
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1501004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- control relay
Range Of ProductTeSys D control relay
ETIM
- ETIM 8
- EC000196
ETIM 9EC000196
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
