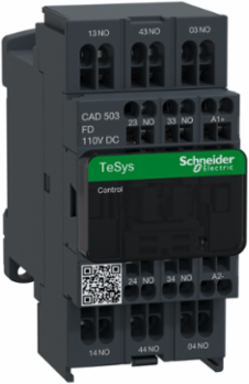

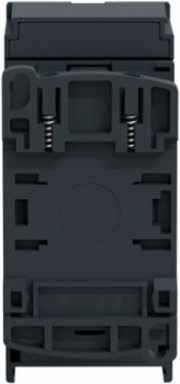

Schneider Electric CAD503FD TeSys Deca Control Relay, 5NO, 110V DC, 10A, 45mm Width
- MPN: CAD503FD
- PPN: SCH-CAD503FD
CAD
$338.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by spring terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth93 mm
Complementary Attributes
- Control Circuit Type
- DC standard
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1250 A DC IEC 60947-5-1
- Minimum Switching Current
- 5 mA
Control Circuit Voltage Limits0.1...0.25 Uc (-40-70 °C):drop-out DC0.7...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
Maximum Operating Rate180 cyc/mn
Minimum Switching Voltage17 V
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks control relay open10 Gn for 11 ms IEC 60068-2-27shocks control relay closed15 Gn for 11 ms IEC 60068-2-27, vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6, vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
- Range
- TeSys, TeSys Deca
- Certificate Agency
- CB, CCC, UL, CSA, EAC, CE, UKCA
- [Ui] Rated Insulation Voltage
- 600 V UL, 600 V CSA690 V IEC 60947-5-1
- Non-overlap Time
- 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.5333878987247123
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.1662563038543174
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1102030EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- CAD
- Device Short Name
- CAD
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Operating Time
- 53...72 ms coil energisation and NO closing16...24 ms coil de-energisation and NO opening
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- control relay
- Range Of Product
- TeSys D control relay
- Software Version
- v5.9.4
- Time Constant
- 28 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 21
- 110 V DC
- Pep Code
- ENVPEP110230EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 75
- Width Nominal
- 45 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Supportrail, plate
Utilisation CategoryDC-13, AC-15, AC-14
[Ue] Rated Operational Voltage<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz<= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz, <= 690 V AC 25...400 Hz
Connections - Terminalsspring terminals 2 1-2.5 mm²solid without cable endspring terminals 1 1-2.5 mm²flexible without cable end, spring terminals 2 1-2.5 mm²flexible without cable end, spring terminals 1 1-2.5 mm²solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.17499315126665246, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.048458574119927315, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]33 kg CO2 eq., 32.70348648648649
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Associated Fuse Rating10 A gG conforming to IEC 60947-5-1
Contactor Applicationcontrol circuit
Inrush Power In W5.4-5.4 W 20 °C)
Mechanical Durability30 Mcycles
Pole Contact Composition5 NO
Product NameTeSys CAD
Protective TreatmentTH IEC 60068
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint38 kg CO2 eq.
Pole Contact Comp5 NO
Connections Terminals 55 Connections Terminalsspring terminals
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type 3NO, a control circuit voltage 24V DC,a power circuit voltage 690V and a rated operational current 9A.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh489.465
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal99 mm
[Icw] Rated Short-time Withstand Current100 A - 1 s120 A - 500 ms140 A - 100 ms
[Uc] Control Circuit Voltage110 V DC
Hold-in Power Consumption In W5.4-5.4 W 20 °C
Package Weight(Lbs)528.000 g
Warranty (In Months)18
