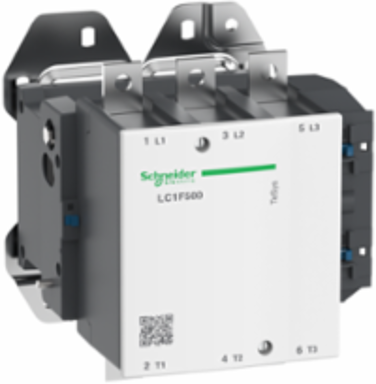

Schneider Electric LC1F500 contactor, TeSys F, 3P(3NO), AC-3, <=440V 1100A with coil LX1/ LX9 48…1000V AC 40/400Hz, LX4 48...440V DC
- MPN: LC1F500
- PPN: SCH-LC1F500
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys F contactor, 3 poles (3NO), 500A/1000V AC-3, for motor applications up to 250kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- <= 1000 V AC 50/60 Hz || <= 460 V DC
- Product Or Component Type
- contactor
- Range
- TeSys
- [Ie] Rated Operational Current
- 700 A 40 °C) <= 440 V AC AC-1 || 500 A 55 °C) <= 440 V AC AC-3
- Poles Description
- 3P
- Device Short Name
- LC1F
Contactor Applicationresistive load || motor control
Product NameTeSys F
Pole Contact Composition3 NO
Utilisation CategoryAC-4 || AC-1 || AC-3
Motor Power Kw250 kW 380...400 V AC 50/60 Hz AC-3) || 280 kW 415 V AC 50/60 Hz AC-3) || 295 kW 440 V AC 50/60 Hz AC-3) || 335 kW 1000 V AC 50/60 Hz AC-3) || 355 kW 500 V AC 50/60 Hz AC-3) || 147 kW 220...240 V AC 50/60 Hz AC-3) || 335 kW 660...690 V AC 50/60 Hz AC-3) || 80 kW 400 V AC 50/60 Hz AC-4)
Complementary
- Product Certifications
- CSA || LROS (Lloyds register of shipping) || DNV || BV || ABS || CB || RMRoS || RINA || UL || UKCA
- Average Impedance
- 0.18 mOhm - Ith 700 A 50 Hz
- [Ith] Conventional Free Air Thermal Current
- 700 A 40 °C
- [Uc] Control Circuit Voltage
- 48...1000 V AC 40...400 Hz with LX1/LX9 coil || 48...440 V DC with LX4 coil
- Rated Breaking Capacity
- 4000 A IEC 60947-4-1
- Associated Fuse Rating
- 500 A aM <= 440 V || 800 A gG <= 440 V
- Connections - Terminals
- power circuit lugs-ring terminals 2 240-240 mm² || power circuit bar 2 40 x 5 mm || power circuit bolted connection || control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 1 1-4 mm² || control circuit screw clamp terminals 2 1-4 mm²
- Maximum Operating Rate
- 2400 cyc/h 55 °C
- Tightening Torque
- power circuit 35 N.m || control circuit 1.2 N.m
- Compatibility Code
- LC1F
- Overvoltage Category
- III
- [Icw] Rated Short-Time Withstand Current
- 4200 A 40 °C - 10 s || 3200 A 40 °C - 30 s || 2400 A 40 °C - 1 min || 1500 A 40 °C - 3 min || 1200 A 40 °C - 10 min
Power Dissipation Per Pole88 W AC-1 || 45 W AC-3
Control Circuit Voltage Limitsoperational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil || drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil || operational: 0.85...1.1 Uc DC with LX4 coil || drop-out: 0.2...0.35 Uc DC with LX4 coil
StandardsJIS C8201-4-1 || EN 60947-1 || IEC 60947-1 || EN 60947-4-1 || IEC 60947-4-1
Mounting Supportplate
Irms Rated Making Capacity5000 A AC IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage8 kV
Inrush Power In Va1050-1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 990-1220 VA (at 20 °C)with LX4 coil
Operating Time40...75 ms closing with LX1/LX9 coil || 100...170 ms opening with LX1/LX9 coil || 50...60 ms closing with LX4 coil || 45...60 ms opening with LX4 coil
Mechanical Durability10 Mcycles
Hold-In Power Consumption In Va16-20 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil || 4.54-8 VA (at 20 °C)with LX4 coil
[Ui] Rated Insulation Voltage1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
Heat Dissipation18-18 W
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1505009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1505009EN
Environment
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open9 Gn for 1/2 sine wave (11 ms) || shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
- Height
- 238 mm
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 front face with shrouds IEC 60529 || IP20 front face with shrouds VDE 0106
- Width
- 233 mm
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C
Ambient Air Temperature For Operation-5-55 °C
Net Weight9.75 kg
Protective TreatmentTH
Operating Altitude3000 m without derating
Depth232 mm
