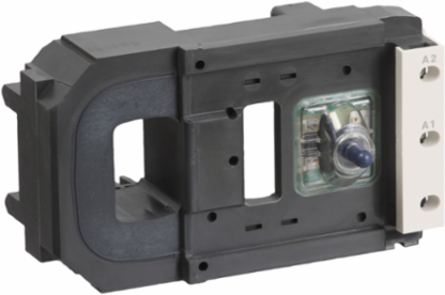

Schneider Electric LX1FJ220 TeSys F - contactor coil - LX1FJ - 220...230 V AC 40...400 Hz

TeSys F - contactor coil - LX1FJ - 220...230 V AC 40...400 Hz
  • MPN: LX1FJ220
  • PPN: SCH-LX1FJ220

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1644.03/ EA

Description

TeSys F AC coil 220/230V 40-400Hz (voltage code M7/P7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F400. It operates in voltage limits 0.85-1.1 Uc and environments until 55°C. It provides high operating rates to the contactor, until 2400 cycles/hour. Green Premium compliant (RoHS/REACh).

Specifications

Environment

Ambient Air Temperature For Operation
-5-55 °C
Net Weight1 kg

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1505009EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
ENVEOLI1505009EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Control Circuit Voltage Limits
operational 0.85...1.1 Uc 40...400 Hz 55 °C) || drop-out 0.3...0.5 Uc 40...400 Hz 55 °C)
Coil Technology
without built-in suppressor module
Heat Dissipation
14-14 W 40...400 Hz
Inrush Power In Va1075-1075 VA 40...400 Hz cos phi 0.9 (at 20 °C)
Hold-In Power Consumption In Va15-15 VA 40...400 Hz cos phi 0.3 (at 20 °C)

Specifications

Average Resistance
37 Ohm inrush 20 °C || 1030 Ohm holding 20 °C
Control Circuit Type
AC 40...400 Hz
Product Or Component Type
contactor coil
Inductance Of Closed Circuit
5.1 H
Operating Time
100...170 ms opening || 40...75 ms closing
Device Short Name
LX1FJ
[Uc] Control Circuit Voltage220...230 V AC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
RangeTeSys
Maximum Operating Rate2400 cyc/h 55 °C
Product CompatibilityLC1F400
Mechanical Durability10 Mcycles
