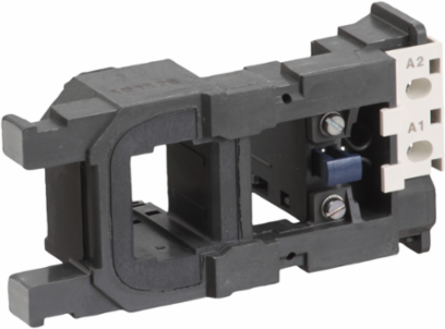

Schneider Electric LX4FF090 TeSys F Contactor Coil 110 V DC Wide Range, 0.43 kg, 1 Mcycles
- MPN: LX4FF090
- PPN: SCH-LX4FF090
CAD
$854.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The TeSys F Contactor Coil from Schneider Electric is designed to provide reliable performance in demanding industrial environments. Operating on a wide range of 110 V DC, this coil ensures efficient control of electrical motors and other machinery with its durability rated for up to 1 million cycles. Ideal for applications in automation and control, this contactor coil is an essential component for starters and contactors, helping to streamline operations and enhance system performance. Its robust design and precision engineering reflect Schneider Electric's commitment to quality and innovation in the field of industrial automation.
Documentation & Downloads
Specifications
Additional
- Voltage
- 110 V DC
- Average resistance
- 13.2 Ohm inrush, 1970 Ohm holding (20 °C)
- Mechanical durability
- 1 Mcycles
- Control circuit voltage limits
- Operational 0.7–1.25 Uc, Drop-out 0.2–0.45 Uc (70 °C)
- Hold-in power consumption
- 4.5 W (20 °C)
- Net weight
- 0.43 kg (0.95 lb)
- Material compliance
- RoHS, REACh SVHC-free, Mercury-free, China RoHS
- Product or component type
- Contactor coil
- Product compatibility
- LC1F150, LC1F115
Inductance of closed circuit121 H
Operating time30–40 ms closing, 30–50 ms opening
Maximum operating rate60 cyc/h (70 °C)
Inrush power560 W (20 °C)
Ambient air temperature for operation-55 to 70 °C (-67 to 158 °F)
Coil technologyWithout built-in suppressor module
RangeTeSys
Device short nameLX4FF
