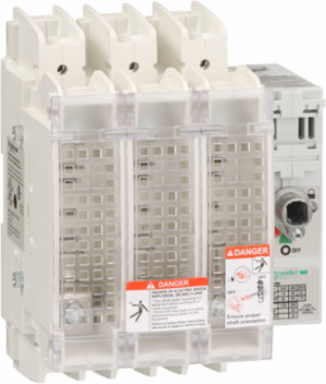

Schneider Electric GS2JU3N TeSys GS Switch Disconnector Fuse, 3P, 100A, UL, Fuse Size J
- MPN: GS2JU3N
- PPN: SCH-GS2JU3N
CAD
$501.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
Features
- This 100-Amp non-flammable disconnect switch provides a simultaneous 3-pole breaking action, allowing industrial electricians to completely isolate 600V power from downstream equipment. The manual operating mechanism ensures a positive, visible break for secure lock-out/tag-out (LOTO) procedures, dramatically increasing technician safety during routine maintenance of motor control centers and industrial HVAC systems.
- Specifically engineered to house up to 100A Class J fuses, this unit offers a compact footprint without sacrificing high-interrupting capacity. Class J fuses provide superior current-limiting performance, restricting high-energy faults to prevent catastrophic damage to sensitive PLC controllers and motor starters, ensuring your facility's high-fault current regions remain fully protected and compliant.
- As a UL 98 listed device, this switch is built to withstand the most demanding commercial and industrial environments, unlike lighter-duty UL 489 or UL 508 alternatives. It is designed to handle frequent high-load switching and can be used as a main disconnect, providing long-term durability and ensuring your installation passes strict National Electrical Code (NEC) inspections.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Short-Circuit Withstand
- 200 kA
- Electrical Durability
- 6,000 cycles
- Rated Impulse Withstand Voltage
- 8 kV
- Fuse Type
- UL
- Operating Handle Type
- external frontal
- Terminal Type
- lugs-ring terminals
- Tightening Torque
- 4 N·m (35.4 lbf·in)
- Ambient Air Temperature for Operation
- -20 to 70 °C (-4 to 158 °F)
- Fire Resistance
- 960 °C (1760 °F) body
- Width
- 149.3 mm (5.88 in)
- Weight
- 2.76 kg (6.09 lb)
- Standards
- CSA C22.2 No 4, UL 98
- Network Frequency
- 50/60 Hz
- Rohs Exemption Information
- Yes
- Circularity Profile
- ENVEOLI2003007EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- Range
- TeSys
- Device Short Name
- GS2JU
Rated Operational Power51 kW at 400 V, 63 kW at 500 V, 90 kW at 690 V
Mechanical Durability10,000 cycles
Rated Insulation Voltage750 V
Poles3P
Fuse SizeJ
Mounting Supportplate
Power Circuit Bars Capacity34–42 mm² (0.05–0.07 in²)
IP Degree of ProtectionIP20 (IEC 60529 with terminal cover)
Ambient Air Temperature for Storage-40 to 80 °C (-40 to 176 °F)
Height186 mm (7.32 in)
Depth122.2 mm (4.81 in)
Material and Construction3 NO contacts
Network TypeAC, DC
ComplianceUL Listed, CSA Certified, RoHS Compliant, REACh, China RoHS
Environmental DisclosureENVPEP2003007EN
Mercury FreeYes
Reach Free Of SvhcYes
Product Or Component Typeswitch-disconnector-fuse
Product NameTeSys GS
Device Applicationprotection
