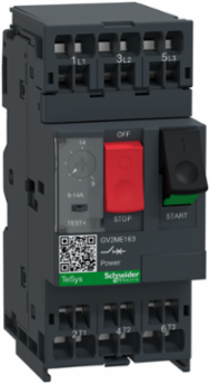

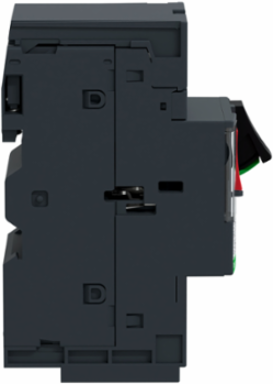

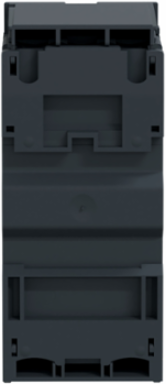

Schneider Electric GV2ME163 TeSys Deca Motor Circuit Breaker 3P 9-14A Thermal Magnetic IP20
Schneider Electric GV2ME163 TeSys Deca Motor Circuit Breaker 3P 9-14A Thermal Magnetic IP20
- MPN: GV2ME163
- PPN: SCH-GV2ME163
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$296.94/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 14A/690V, for 3-phase motor applications 5.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 9-14A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 2000 m
Ik Degree Of ProtectionIK04
Ambient Air Temperature For Operation-20-60 °C
Climatic WithstandIACS E10
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121004
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121004
Complementary
- [In] Rated Current
- 14 A
- Height
- 101 mm
- Rated Duty
- continuous IEC 60947-4-1
- Magnetic Tripping Current
- 170-170 A
- Motor Power Kw
- 5.5-5.5 kW 400/415 V AC 50/60 Hz || 7.5-7.5 kW 500 V AC 50/60 Hz
- Net Weight
- 0.28 kg
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Control Type
- push-button
- Electrical Durability
- 100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
- Breaking Capacity
- 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
- Thermal Protection Adjustment Range
- 9-14 A IEC 60947-4-1
- Poles Description
- 3P
- Width
- 45 mm
- Network Frequency
- 50/60 Hz IEC 60947-4-1
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Phase Failure Sensitivityyes IEC 60947-4-1
Network TypeAC
[Ith] Conventional Free Air Thermal Current14 A IEC 60947-4-1
Utilisation Categorycategory A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 50 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2
Power Dissipation Per Pole2.5 W
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Suitability For Isolationyes IEC 60947-1 § 7-1-6
Mechanical Durability100000 cycles
Colourdark grey
Depth78.5 mm
Specifications
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Device Short Name
- GV2ME
Product NameTeSys GV2 || TeSys Deca
Device Applicationmotor protection
Trip Unit Technologythermal-magnetic
