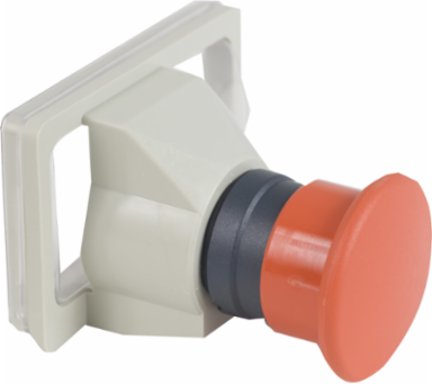

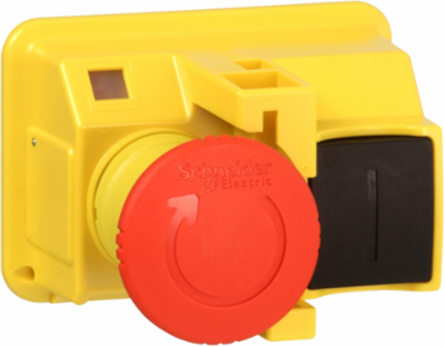

Schneider Electric GV2K011 TeSys Emergency Stop Pushbutton, 40 mm Diameter, IP55, Spring Return

MPN: GV2K011
PPN: SCH-GV2K011
UNSPSC: 39121521

$60.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys enclosed starters accessory, emergency stop pushbutton. Mushroom head stop pushbutton, Ø 40 mm, red, with spring return, supplied with an IP55 sealing kit GV2E01. To be mounted on empty enclosures LE1GVMEK, GV2MP, GV2MC (except GV2MCK04 already equipped) for use with thermal magnetic circuit breakers GV2ME (to be ordered separately).

Features

Quick machenical respond with spring return
Easy to operate with red mushroom head
Widely used on standard and safety starters and thermal magnetic circuit breakers
It provides relyable perfomance with high level protection degree sealing kit

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Physical Attributes

Color	Red

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Product Name	LE, GV2
Local Data Status	Publishable
Return Indicator	Y
Traceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2207006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2026
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	GV2K
Diameter	40 mm
Product Or Component Type	mushroom head emergency stop push-button
Range	TeSys
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal	48 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	8538908180

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Range Of Product	TeSys GV2, TeSys LE
Local Publishable Date	2026-07-28
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	GV2K
Product Availability	Stock - Normally stocked in distribution facility
Provided Equipment	1 IP55 sealing kit
Returnability	Yes
Type Of Operator	spring return
Type Of Operator 8	spring return
Width Nominal	73 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2207006EN
Ip Degree Of Protection	IP55
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold

Product Compatibility	GV2MP, GV2MC, LE1GVMEK
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Circularity Profile	ENVEOLI2207006
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2207006EN
