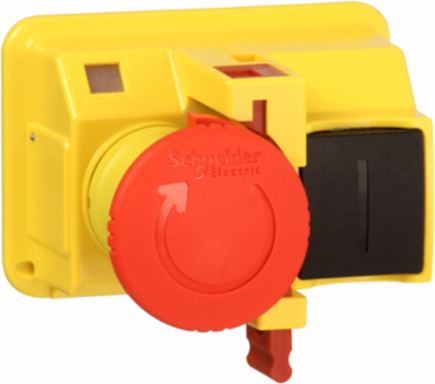

Schneider Electric GV2K04 Emergency Stop Pushbutton, 40mm, IP55, Latching Turn to Release
- MPN: GV2K04
- PPN: SCH-GV2K04
CAD
$182.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys enclosed starters accessory, emergency stop pushbutton. Mushroom head stop pushbutton, Ø 40 mm, red, with latching position and release by turning, supplied with an IP55 sealing kit GV2E01. To be mounted on empty enclosures LE1GVMEK, GV2MP, GV2MC (except GV2MCK04 already equipped) for use with thermal magnetic circuit breakers GV2ME (to be ordered separately). Padlockable in position O (OFF) with 1 padlock (to be ordered separately).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States
Physical Attributes
- Color
- Red
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Name
- GV2, LE
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2026
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- GV2K
- Diameter
- 40 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- 1 IP55 sealing kit
- Returnability
- Yes
- Type Of Operator
- latching turn to release
- Pep Code
- ENVPEP2207006EN
- Width Nominal
- 73 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Range Of ProductTeSys GV2, TeSys LE
Local Publishable Date2026-03-25
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGV2K
Locking Options Descriptionpadlock in OFF position
Product Or Component Typemushroom head emergency stop push-button
RangeTeSys
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal48 mm
Accessory / Separate Part Categoryenclosure accessory
Package Weight(Lbs)141.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2207006EN
- Ip Degree Of Protection
- IP55
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Product CompatibilityGV2MP, LE1GVMEK, GV2MC
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI2207006
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
General Attributes
- Range Of Product
- TeSys GV2, TeSys LE
- Provided Equipment
- 1 IP55 sealing kit
Product Or Component Typemushroom head emergency stop push-button
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
