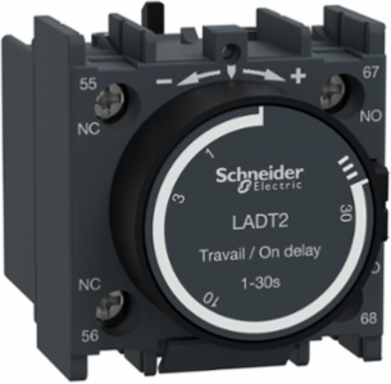

Schneider Electric LADT2 TeSys Deca Time Delay Contact Block 1NO+1NC, On-Delay 1-30s, Front Mounting
- MPN: LADT2
- PPN: SCH-LADT2
- UNSPSC: 39121529
CAD
$243.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. The one NO and one NC contacts can be used in the control circuit. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC). TeSys Deca contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
Features
- Featuring a high-precision pneumatic timing mechanism, this block allows for an adjustable delay range of 0.1 to 30 seconds upon energizing the contactor. This "On-Delay" functionality is critical for star-delta motor starting or sequenced conveyor activation, preventing massive power grid spikes and mechanical strain by ensuring equipment doesn't all pull high-inrush current simultaneously.
- Engineered for seamless integration, this auxiliary module clips directly onto the front of Schneider Electric TeSys D and TeSys F contactors or control relays. This tool-free, snap-on mounting saves significant installation time and panel space, allowing industrial electricians to add advanced timing logic to an existing motor starter without the need for additional DIN-rail timers or complex rewiring.
- Equipped with one Normally Open (NO) and one Normally Closed (NC) instantaneous contact set, this block provides versatile feedback for your automation logic. You can simultaneously signal a PLC that the timing sequence has begun while interlocking another component for safety, ensuring your control circuit operates with the high reliability required in demanding manufacturing environments.
- Built to withstand millions of mechanical cycles, the LADT2 is designed for the rigors of heavy industrial use. The IP20 finger-safe terminals protect maintenance personnel from accidental contact with live circuits, while the rugged housing ensures consistent timing accuracy even in high-vibration environments, reducing unplanned downtime and long-term maintenance costs.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Turkey, United States |
|---|
| Depth | 61 mm |
|---|
Physical Attributes
| Color | dark grey |
|---|
Complementary Attributes
| Ie Rated Operational Current | 6 A at 120 V AC-151.04 A at 690 V AC-15, 0.55 A at 125 V DC-130.1 A at 600 V DC-13 |
|---|---|
| Irms Rated Making Capacity | 140 A at <= 690 V AC conforming to IEC 60947-5-1250 A at <= 690 V DC conforming to IEC 60947-5-1 |
| Minimum Switching Voltage | 17 V |
| Ui Rated Insulation Voltage | 690 V IEC 60947-5-1600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1 |
|---|---|
| Minimum Switching Current | 5 mA |
| Ue Rated Operational Voltage | 690 V AC 25...400 Hz |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range | TeSys, TeSys Deca |
| Time Delay Range | 1...30 s, 1...30 s |
| Certificate Agency | IECEE CB Scheme, UL, CSA, CCC, EAC, UKCA |
| Carbon Footprint Of The Distribution Phase A4 | 0.022484, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.01299, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 3 kg CO2 eq., 3.1606 |
| Local Publishable Date | 2026-07-07 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Insulation Resistance | > 10 MOhm> 10 MOhm |
| Mounting Location | front |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | time delay auxiliary contact block |
| Protective Treatment | TH IEC 60068 |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Timer Type | on delay |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | referent product |
| Width Nominal | 44 mm |
| Customs Code | 8536509065 |
| Permissible Short Time Rating | 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms |
| Packaging Weight In G | 8 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 1.7 N.m flat Ø 6 mm, 1.7 N.m Philips No 2, 1.7 N.m pozidriv No 2 |
| Connections Terminals | 2 1-2.5 mm²flexible without cable end 2 1-2.5 mm²rigid, screw clamp terminalsscrew clamp terminals 1 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²flexible without cable end, screw clamp terminals 2 1-2.5 mm²flexible with cable end, screw clamp terminals 1 1-2.5 mm²rigid |
| Non Overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.19589 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.6 kg CO2 eq., 0.55627 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Use Carbon Footprint | 3.1606 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2538 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Environmental Characteristic | normal environment |
| Mechanical Durability | 5 Mcycles |
| Pole Contact Composition | 1 NO + 1 NC |
| Product Name | TeSys Deca |
| Protection Type | gG fuse 10 A |
| Range Of Product | TeSys Deca |
| Shielding Continuity Terminal | without |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 4 kg CO2 eq. |
| Database Version | 2022-01 |
| Height Nominal | 48 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A (at 60 °C) |
| Warranty In Months | 18 |
| Functional Unit Description | Time delay module during 20 years on TeSys Deca contactors (front mounting), the ON time delays adjustable from 1 to 30s and the OFF time delays adjustable from 1 to 30s. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 37 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 3.948234 |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP110702EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110702EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-12-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | time delay auxiliary contact block |
|---|
| Range Of Product | TeSys Deca |
|---|
