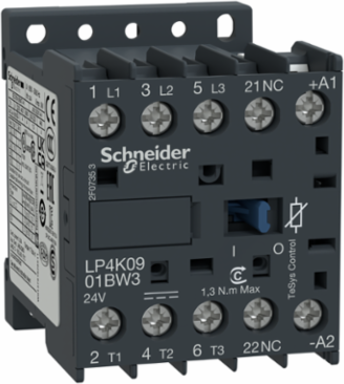

Schneider Electric LP4K0601BW3 TeSys K Contactor 3P 6A 24V DC Coil IP2X
- MPN: LP4K0601BW3
- PPN: SCH-LP4K0601BW3
CAD
$98.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Features
- Engineered with a highly space-efficient $45\text{ mm}$ width, this TeSys K contactor delivers full 3-pole, 6-Amp (AC-3) performance capable of driving motors up to $3\text{ kW}$ at $400\text{V}$. This micro-footprint layout allows industrial panel builders and automation technicians to squeeze heavy-duty motor control into tightly packed enclosures, making it an ideal choice for localized pumps, fans, and conveyor systems.
- Operating on a standard 24V DC control signal, the internal coil features an optimized low-power consumption design that draws minimal wattage during hold. This low thermal dissipation allows it to be switched directly by solid-state programmable logic controller (PLC) outputs, eliminating the expense, wiring clutter, and space required for intermediate interposing relays.
- Designed with integrated IP2X-rated terminal covers, this contactor provides a robust physical barrier that prevents fingers or tools from making inadvertent contact with live electrical connections. This built-in safety architecture ensures your control panel fully complies with international OSHA and IEC safety standards, minimizing workplace hazards during routine troubleshooting.
- Designed with one integrated normally closed (1 NC) auxiliary contact, this unit allows machine builders to instantly configure safe electrical interlocking, remote status indication, or PLC fault-feedback loops out of the box. By embedding the auxiliary element into the molded frame, it saves the cost of buying external add-on blocks and preserves valuable DIN rail space.
Documentation & Downloads
Specifications
Key Specifications
- Contactor Application
- motor control
- Range
- TeSys
Product Or Component Typecontactor
Device Short NameLP4K
Complementary
- Minimum Switching Current
- 5 mA for signalling circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC <= 400 Hz || signalling circuit <= 690 V AC <= 400 Hz
- Average Impedance
- 3 mOhm - Ith 20 A 50 Hz for power circuit
- Control Circuit Voltage Limits
- operational: 0.7...1.3 Uc (at <50 °C) || drop-out: >= 0.10 Uc (at <50 °C)
- Mounting Support
- plate || rail
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Irms Rated Making Capacity
- 110 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-3 || AC-3e || AC-4
- Minimum Switching Voltage
- 17 V for signalling circuit
- Electrical Durability
- 1.3 Mcycles 6 A AC-3 <= 440 V || 1.3 Mcycles 6 A AC-3e <= 440 V || 0.05 Mcycles 36 A AC-4 <= 440 V
- Inrush Power In W
- 1.8-1.8 W 20 °C)
- Poles Description
- 3P
- Width
- 45 mm
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14
- Heat Dissipation
- 1.8-1.8 W
[Uc] Control Circuit Voltage24 V DC
Height58 mm
Auxiliary Contact Composition1 NC
[Ith] Conventional Free Air Thermal Current20 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
Control Circuit TypeDC wide range
Hold-In Power Consumption In W1.8-1.8 W 20 °C
Rated Breaking Capacity110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
Motor Power Kw1.5 kW 220...230 V AC 50/60 Hz AC-3 || 2.2 kW 380...415 V AC 50/60 Hz AC-3 || 3 kW 440/690 V AC 50/60 Hz AC-3 || 1.5 kW 220...230 V AC 50/60 Hz AC-3e || 2.2 kW 380...415 V AC 50/60 Hz AC-3e || 3 kW 440/690 V AC 50/60 Hz AC-3e || 1.5 kW 220...230 V AC 50/60 Hz AC-4 || 2.2 kW 380...415 V AC 50/60 Hz AC-4 || 3 kW 440/690 V AC 50/60 Hz AC-4
Net Weight0.235 kg
Connections - Terminalsscrew clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end || power circuit screw clamp terminals 2 1.5-1.5 mm²flexible with cable end
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
[Ie] Rated Operational Current6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Maximum Operating Rate3600 cyc/h
Mechanical Durability30 Mcycles
Auxiliary Contacts Typeinstantaneous 1 NC
Operating Time10...20 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing
Tightening Torque0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2
Depth57 mm
[Icw] Rated Short-Time Withstand Current90 A 50 °C - 1 s for power circuit || 85 A 50 °C - 5 s for power circuit || 80 A 50 °C - 10 s for power circuit || 60 A 50 °C - 30 s for power circuit || 45 A 50 °C - 1 min for power circuit || 40 A 50 °C - 3 min for power circuit || 20 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit
Environment
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
- Ambient Air Temperature For Storage
- -50-80 °C
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-25-50 °C
Flame RetardanceV1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
