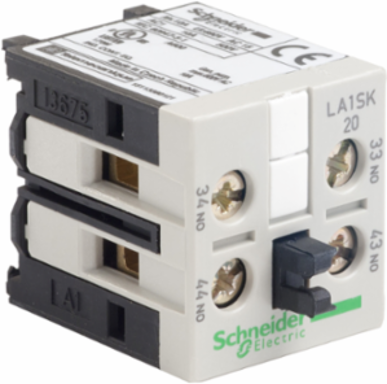

Schneider Electric LA1SK20 TeSys SK Auxiliary Contact Block 2NO, 10A/690V, Front Mounting
- MPN: LA1SK20
- PPN: SCH-LA1SK20
CAD
$40.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gL conforming to IEC 60947, 10 A gL conforming to VDE 0660
- Certificate Agency
- CB Scheme, CE, UKCA, EAC, cULus
- Connections - Terminals
- screw clamp terminals 2 0.35-1.5 mm²flexible without cable endscrew clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible with cable end, screw clamp terminals 1 0.35-6 mm²flexible without cable end
- Local Publishable Date
- 2025-08-13
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LA1SK
- Mounting Location
- front side
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC IEC 60068
- Returnability
- Yes
- Tightening Torque
- 0.8 N.m screw clamp terminals
- Pole Contact Comp
- 2 NO
- Width Nominal
- 27 mm
- [Ue] Rated Operational Voltage
- 690 V AC <= 400 Hz
- Package Weight(Lbs)
- 27.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Range Of ProductTeSys SK, TeSys SK control relay
[Ui] Rated Insulation Voltage690 V IEC 60947, 690 V BS 5424, 690 V VDE 0110 group C, 690 V CSA C22.2 No 14
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLA1SK
Pole Contact Composition2 NO
Product Or Component Typeauxiliary contact block
RangeTeSys
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1503003EN
[Ith] Conventional Free Air Thermal Current10 A (at 55 °C)
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-70 °C, -50-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP2X
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- LC1SK
- Pep Code
- ENVPEP1503003EN
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- TeSys SK, TeSys SK control relay
Product Or Component Typeauxiliary contact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
