Schneider Electric CA2SK20U7 TeSys SK Control Relay 2NO 10A 690V AC 240V 27mm Width
- MPN: CA2SK20U7
- PPN: SCH-CA2SK20U7
CAD
$103.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

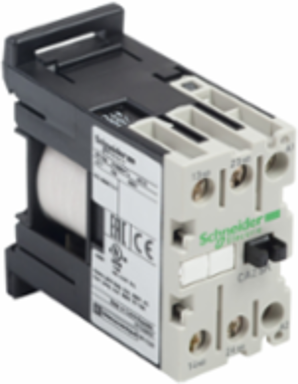

TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- <= 690 V <= 400 Hz
- [Uc] Control Circuit Voltage
- 240 V AC 50/60 Hz
- Product Or Component Type
- control relay
- Range
- TeSys
- Utilisation Category
- AC-15 || DC-13
Control Circuit TypeAC 50/60 Hz
Contactor Applicationcontrol circuit
Product NameTeSys CASK
Pole Contact Composition2 NO
Device Short NameCA2SK
Complementary
- Height
- 56 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 55 °C)
- Associated Fuse Rating
- 10 A gL conforming to VDE 0660 || 10 A gL conforming to IEC 60947
- Inrush Power In Va
- 16-16 VA (at 20 °C)
- Maximum Operating Rate
- 1200 cyc/h
- Mechanical Durability
- 10 Mcycles
- Operating Time
- 6...8 ms coil de-energisation and NO opening || 7...14 ms coil energisation and NO closing
- Depth
- 55.5 mm
- Heat Dissipation
- 1.4-1.4 W
Control Circuit Voltage Limitsdrop-out: 0.2...0.75 Uc (at <50 °C) || operational: 0.85...1.1 Uc (at <50 °C)
Mounting Supportplate || rail
Net Weight0.132 kg
Connections - Terminalsscrew clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible without cable end || screw clamp terminals 1 0.35-6 mm²flexible with cable end || screw clamp terminals 2 0.35-1.5 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible without cable end
Tightening Torque0.8 N.m screw clamp terminals pozidriv No 1
Hold-In Power Consumption In Va4.2-4.2 VA (at 20 °C)
Width27 mm
[Ui] Rated Insulation Voltage690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
Environment
- Product Certifications
- CB Scheme || cULus || EAC || CE || UKCA
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1
- Protective Treatment
- TC IEC 60068
- Operating Altitude
- 2000 m without derating
Ambient Air Temperature For Operation-20-50 °C
Ambient Air Temperature For Storage-50-70 °C
Ip Degree Of ProtectionIP2X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
