TeSys Enclosed Switch Disconnector 100A, 3-Pole, IP65, Rotary Handle
Schneider Electric

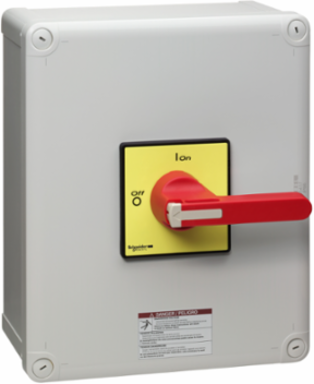

Schneider Electric VC5GUN TeSys Enclosed Switch Disconnector 100A, 3-Pole, IP65, Rotary Handle

  • MPN: VC5GUN
  • PPN: SCH-VC5GUN
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $418.23

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 50HP@600V. It provides an IP65 / NEMA type 12 enclosure, V5 Vario switch disconnector and red & yellow operator. VC5GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 50HP@600V. It includes a V5 Vario switch disconnector rated 100A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V5 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating long red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 1 add-on pole to the switch body , neutral (VZ13), earthing (VZ16), auxiliary (VZ7, VZ20).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, United States
    Depth191 mm

    Physical Attributes

    Handle Color
    red
    Handle Front Plate Coloryellow

    Complementary Attributes

    Rated Power In Hp
    25 hp 240 V, UL50 hp 480 V, UL, 50 hp 600 V, UL
    Rated Operational Power In W37 kW 400 V AC-23)30 kW 400 V AC-3)

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Electrical Durability
    30000 cycles AC-21, 30000 cycles DC-1...5
    Certificate Agency
    IEC 60947-4-1, CSA C22.2 No 14, UL 508, IEC 60204
    Rated Conditional Short-circuit Current
    10 kA 400 V 125 A aM, 10 kA 400 V 125 A gG
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.5 kg CO2 eq., 0.4791854051208496
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    1 kg CO2 eq., 1.151889090606445
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    enclosed switch disconnector
    Device Short Name
    VC-GUN
    Fire Resistance
    960 °C IEC 60595-2-1
    Marking
    0 - 1
    Mechanical Robustness
    vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
    Performance Level
    high performance
    Product Name
    TeSys VARIO
    Protective Treatment
    TC
    Returnability
    Yes
    Software Version
    v6.1
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    15 kg CO2 eq.
    Handle Color
    red
    Rated Thermal Current
    100 A
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    Functional-unit Unit
    unit
    Energy Model - Manufacturing [A1-a3]
    Czech Republic, CZ
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; France, FR
    Recyclability Potential In %
    20
    Width Nominal
    241 mm
    [Icw] Rated Short-time Withstand Current
    1500 A 400 V 1 s
    [Ue] Rated Operational Voltage
    690 V AC 50/60 Hz
    Connections - Terminals
    screw clamp terminals 95-95 mm² solid - with cable endscrew clamp terminals 70-70 mm² flexible
    Package Weight(Lbs)
    2.874 kg
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Making Capacity1250 A 400 V AC-21A, 1250 A 400 V AC-22A, 1250 A 400 V AC-23A
    [Ithe] Conventional Enclosed Thermal Current100 A, 100.0 A IEC 690 V100 A UL 600 V
    Carbon Footprint Of The Distribution Phase [A4]0.04267582213199736, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.03463159527717865, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 13.432378470046519
    Local Publishable Date2026-06-27
    Stocking FlagY
    Device TypeLV equipment - LV switch - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1936
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Base Dimension90 x 90 mm
    Control Typerotary handle
    Environmental Characteristicstandard environment
    Intermittent Duty Class30
    Mechanical Durability30000 cycles
    Number Of Poles3P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeenclosed emergency stop switch disconnector
    RangeTeSys
    Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
    Suitability For Isolationyes
    Tightening Torque22.6-22.6 N.m screw clamp terminals
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Handle Front Plate Coloryellow
    Pep CodeENVPEP2211019EN
    Pep Verification Date2025-08-05
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
    Height Nominal291 mm
    [Icm] Rated Short-circuit Making Capacity2.8 kA 400 V at Ipeak
    [Ie] Rated Operational Current68.5 A AC-23A)400 V
    [Uimp] Rated Impulse Withstand Voltage8 kV
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509065

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Nema Degree Of Protection
    NEMA 12, NEMA 1, NEMA 4X
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2211019EN
    Ip Degree Of Protection
    IP65 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2211019EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
    Take BackNo
    Toxic Heavy Metal FreeYes
    Carbon Footprint15.14076038318299
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-08-05
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    enclosed emergency stop switch disconnector

    ETIM

    ETIM 8
    EC000216
    ETIM 9EC000216

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
