Schneider Electric VBF01 TeSys Vario Switch Disconnector, 20A, 3P, IP65, Rotary Handle
- MPN: VBF01
- PPN: SCH-VBF01
CAD
$111.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

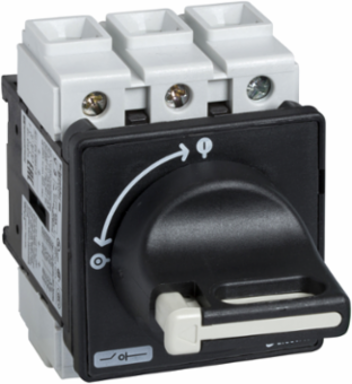

VBF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. For door mounting with 4 screw fixing, it provides a black & grey operator with IP65 protection. VBF01 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main switching in motor applications 5.5kW@400V AC-23. It consists of a V01 Vario switch body and a padlockable black & grey operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V01 and a black & grey operator, for main switching, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ01), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Physical Attributes
- Handle Color
- black
Handle Front Plate Colorblack
Complementary Attributes
- Rated Operational Power In W
- 7.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 11 kW 690 V AC-23A), 3 kW 230...240 V AC-3), 4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 7.5 kW 500 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- handle, switch
- Making Capacity
- 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
- Mounting Support
- handle door, switch door
- Certificate Agency
- GL, UL, CCC, CSA, UKCA
- Rated Conditional Short-circuit Current
- 10 kA 400 V 20 A aM, 10 kA 400 V 20 A gG
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6629610756790507, 0.7 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.579208650841355
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- main switch disconnector
- Control Type
- rotary handle
- Device Short Name
- VBF
- Fixing Mode
- by 4 screws handle
- Marking
- 0 - 1
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- switch disconnector
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Software Version
- v6.1
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 31 kg CO2 eq.
- Handle Color
- black
- Thermal Current 3
- 20 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 433.62
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 74 mm
- [Icm] Rated Short-circuit Making Capacity
- 1 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 11 A AC-23 Ue: 400 V
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles AC-21, 30000 cycles DC-1...5
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
Network TypeAC, DC
Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase [A4]0.04871669193150384, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.02191936744141827
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]29 kg CO2 eq., 28.971796700100345
Local Publishable Date2025-12-03
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension60 x 60 mm
Contacts Type And Composition3 NO
Device Applicationpreventive maintenance
Fire Resistance960 °C IEC 60695-2-1
Intermittent Duty Class30
Mechanical Durability100000 cycles
Performance Levelhigh performance
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityNo
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquepower circuit 2.1-2.1 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorblack
Pep CodeENVPEP2211006EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential, In %57
Width Nominal60 mm
[Icw] Rated Short-time Withstand Current300 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current20 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Halogen-free StatusHalogen free product
Package Weight(Lbs)218 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ip Degree Of Protection
- IP20 conforming to IEC 60529, IP65
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 31.284602485993673
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
