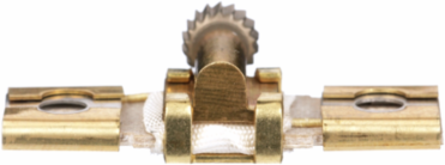

Square D B56.0 Thermal Fuse Holder, Class 20, Accepts 13/32 Inch Fuses, 600 VAC/VDC
Square D B56.0 Thermal Fuse Holder, Class 20, Accepts 13/32 Inch Fuses, 600 VAC/VDC
- MPN: B56.0
- UPC: 785901587620
- PPN: SCH-B56.0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$47.05/ EA
Description
Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This sectional fuse holder will accept class H fuses that have a 13/32 inch diameter and are 1.5 inches long. This sectional fuse holder has a pressure wire connector for use with solid or stranded copper wires from #18 AWG through #10 AWG. Each terminal is approved for use with various wire combinations. Each terminal accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 to 4 #16 AWG or 1 to 4 #18 AWG wires. The nylon block is molded in the natural color of nylon (off white). A 9080GH63 fuse puller is supplied with each fuse holder. This block is UL component recognized and CSA certified for up to 30 Amp and are rated at up to 600 VAC or VDC.
Specifications
Specifications
- Thermal Overload Type
- melting alloy
- Motor Tripping Class
- 20
Range Of ProductB
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
