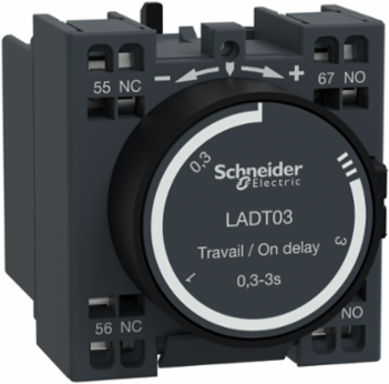

Schneider Electric LADT03 TeSys Deca Time Delay Auxiliary Contact Block, 1NO+1NC, 0.3-3s Delay, 690V AC
- MPN: LADT03
- PPN: SCH-LADT03
CAD
$261.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys Deca time delay auxiliary contact block, for contactors LC1D and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 0.3-3s, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth61 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC, 250 A DC
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Certificate Agency
- CB, UL, CSA, CCC, EAC, UKCA
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1, 600 V UL, 600 V CSA
- Non-overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01994433894775979, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01152272562406154, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 3 kg CO2 eq., 3.1606
- Local Publishable Date
- 2025-04-06
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Insulation Resistance
- > 10 MOhm> 10 MOhm
- Mounting Location
- front
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- time delay auxiliary contact block
- Protective Treatment
- TH IEC 60068
- Returnability
- No
- Software Version
- v5.9.4
- Timer Type
- on delay
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Time delay module during 20 years on TeSys Deca contactors (front mounting), the ON time delays adjustable from 1 to 30s and the OFF time delays adjustable from 1 to 30s.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential, In %
- 37
- Width Nominal
- 44 mm
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Package Weight(Lbs)
- 80.0 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1606
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 22.321
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 663.02
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 606.91
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Time Delay Range0.3...3 s, 0.3...3 s
[Ie] Rated Operational Current6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13
Connections - Terminalsspring terminals 2 2.5-2.5 mm²flexible without cable end, spring terminals 2 2.5-2.5 mm²rigid
Permissible Short-time Rating100 A 60 °C 1 s, 120 A 60 °C 500 ms, 140 A 60 °C 100 ms
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.17376341204753004
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.49343699637388094
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Use Carbon Footprint3.1606
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Environmental Characteristicnormal environment
Mechanical Durability5 Mcycles
Pole Contact Composition1 NO + 1 NC
Product NameTeSys Deca
Protection TypegG fuse 10 A
Range Of ProductTeSys Deca
Shielding Continuity Terminalwithout
Sustainable PackagingYes
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Pep CodeENVPEP110702EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal48 mm
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]3.1524
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]606.91
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]81.925
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.111
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.111
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 3.8592674729932326
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP110702EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP110702EN
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- time delay auxiliary contact block
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC002060
ETIM 9EC002060
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
