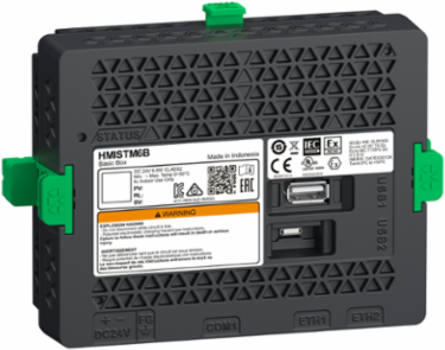

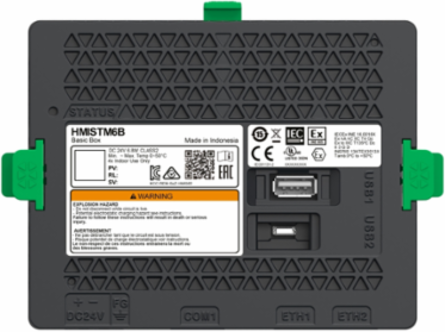

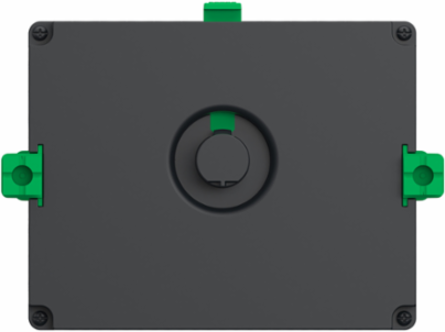

Schneider Electric HMISTM6B Harmony ST6 Touch Panel Screen, 24VDC, 1 COM, 2 Ethernet, 145.6 mm Width

  • MPN: HMISTM6B
  • PPN: SCH-HMISTM6B
  • UNSPSC: 43211506
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1254.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This touch panel screen from Schneider Electric is a versatile solution for automation and control applications, featuring a 24VDC power input. With its compact width of 145.6 mm, it is designed to fit seamlessly into various industrial settings. Equipped with one COM port and two Ethernet ports, it ensures reliable connectivity and efficient data exchange, making it an excellent choice for PLC environments and data acquisition tasks. The HMISTM6B model stands out for its user-friendly interface, delivering an intuitive approach to managing complex processes with ease.

    Features

    • Reduces implementation time
    • Fast maintenance and easy replacement
    • Fewer programming steps and fast customization
    • Easy and fast installation
    • Provides high-quality graphics and stylish design
    • Enhanced cybersecurity from application to firmware level

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia
    Depth41.4 mm
    Weight270 g

    Complementary Attributes

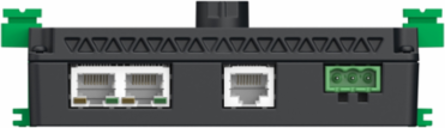

    Integrated Connection Type1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom1 USB 2.0 type Aback, 1 USB 2.0 type micro Bback2 Ethernet - female RJ45bottom
    Us Rated Supply Voltage24 V DC +/- 20 %)

    Important Information Attributes

    Persona Type IdsEU, OM, OM8, PB, SC
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Downloadable ProtocolsModbus, Uni-TE, third party protocols
    Local Signallingstatus LED red, flashing operating, status LED green, steady offline, status LED green, steady operating, status LED green, flashing operatingstatus LED green, faded stand-bystatus LED orange, flashing software starting upstatus LED red, steady power supply (ON)status LED red, off power supply (OFF)
    Realtime Clockbuilt-in 0...50 °C, built-in 10...90 % RH
    Certificate AgencyCE, UKCA, cULus, RCM, KC, cULus Class 1 Division 2, DNV, ABS, RINA, BV
    Carbon Footprint Of The End Of Life Phase C1 To C40.0744353578, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A354 kg CO2 eq., 53.7645820806
    Local Data StatusPublishable
    Return IndicatorN
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier1
    Function OptionStandard
    Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 1 kV (signal ports)electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3electrostatic discharge immunity test - test level: 8 kV (air discharge)
    Immunity To Microbreaks2 ms
    MarkingCE
    Number Of Pages200 application pages
    Power Consumption In W6.8 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Range Of ProductHarmony ST6
    Shock Resistance147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
    Supplyexternal supply
    Total Lifecycle Carbon Footprint242 kg CO2 eq.
    Database Version2016-11
    Height Nominal108.2 mm
    Nbr. Of Units In Pkg.1
    Cut Out DimensionsØ 22.5 mm
    Halogen Free StatusProduct contains halogen above thresholds
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y10
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Fixing ModeØ 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201, Ø 22 mm hole IEC 61131-2, Ø 22 mm hole IEC 61000-6-2
    Product BrandSchneider Electric Modicon, Mitsubishi Melsec, Omron Sysmac, Rockwell Automation Allen-Bradley, Siemens Simatic
    Vibration Resistance+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2, +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-29.8 m/s² 9-150 Hz)
    Carbon Footprint Of The Distribution Phase A40.0348364402, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.0034941972
    Carbon Footprint Of The Use Phase B2 B3 B4 B6188 kg CO2 eq., 187.6336538462
    Local Publishable Date2026-01-12
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2007003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2518
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Enclosure MaterialPC
    Inrush Current30 A
    Memory Description1 GB device memory128 MB user data memory512 KB backup memory
    Port Ethernet10/100BASE
    Processor NameARM Cortex-A8
    Product Or Component Typetouch panel screen
    ReturnabilityNo
    Software VersionEIME v5.8.1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product

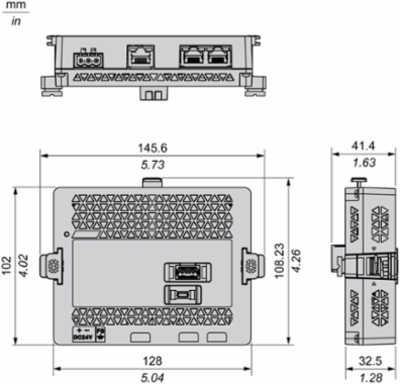

    Width Nominal145.6 mm
    Customs Code8537109170
    F Gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Silicone FreeNo
    Functional Unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.4W.
    Functional Unit Unitunit
    Energy Consumption On Product Lifetime In Kwh306.6

    Environment Attributes Main

    Ambient Air Temperature For Storage-20-60 °C, -20-60 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Carbon Footprint241.5110019219
    Circularity ProfileENVEOLI2007003EN
    Eu Rohs DirectiveCompliant By Exemption
    Ip Degree Of ProtectionIP20 IEC 61131-2 rear panel)
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2007003EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    F Gas Usage PerformanceOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP2007003EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Relative Humidity10-90 % non-condensing
    Pep Verification Date2020-10-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typetouch panel screen
    Range Of ProductHarmony ST6

    ETIM

    ETIM 8EC001412
    ETIM 10EC001412
    ETIM 9EC001412

    Batteries & Runtime Attributes

    Removable BatteryUSER_REPLACEABLEUser replaceable
