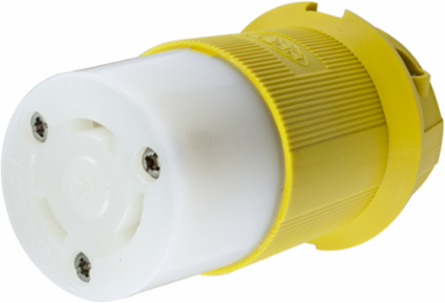

Hubbell Wiring Device-Kellems HBL26CM23 Corrosion Resistant Twist-Lock Connector 30A 250V AC NEMA L6-30R
- MPN: HBL26CM23
- UPC: 783585039121
- PPN: HBL-HBL26CM23
- UNSPSC: 39121421
CAD
$162.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Connector, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, Yellow nylon
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants.
- Corrosion Resistant
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 3.86 in x 2.26 in x 2.26 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.6;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact);Environmental - Moisture Resistance - IP20 Suitability |
| Amperage Rating | 30 A |
| Color | Yellow |
| Insulation | Insulated Body |
| Number of Poles | 2-Pole |
| Special Features | Corrosion Resistant |
| Voltage Rating | 250 VAC |
| Weight | 0.35 lb. |
| Engineering Drawing 1 Display Text | HBL26CM23 AutoCAD Drawing |
| Dielectric Strength | Withstands 2,000V minimum |
| Nema Rating | L6-30R |
| Number Of Wires | 3-Wire Grounding |
| Phase | Single Phase |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 2623CY;26CM23 |
| Cord Range | 0.360"-0.930" (9-24) |
| Current Rating | 30 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 30 EA |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 30 A |
|---|---|
| Height | 2.26 in |
| Length | 3.86 in |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty Industrial/Marine |
| Environmental Conditions | Corrosion Resistant |
| NEMA Rating | L6-30R |
| Size | 3.86 in x 2.26 in x 2.26 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Voltage Rating Description | 250 VAC |
| Width | 2.26 in |
| Connectivity | Pressure Terminal Screws |
| Display Size | Standard |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Wire Size | #16 AWG to #8 AWG |
| Description - Invoice | LKG CONN, CM, 30A 250V, L6-30R, YL |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A08A110 |
| Material - Mounting Hardware | Cord Mounted |
| Material | Nylon |
| BOX SIZE | 7.900x12.600x9.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585039121 |
| Case Weight | 11.150 lb. |
| Lowest Level UOM | Each |
Certifications
| Listings | UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42 |
|---|
