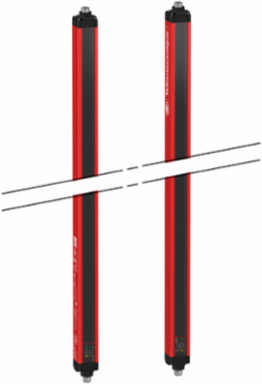

Telemecanique Sensors XUSL4E2BB051NS2 Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave2, For body protection, 510 mm
Telemecanique Sensors XUSL4E2BB051NS2 Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Slave2, For body protection, 510 mm
- MPN: XUSL4E2BB051NS2
- PPN: TES-XUSL4E2BB051NS2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1712.70/ EA
Specifications
Environment
- Product Certifications
- cULus || TÜV || CE
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 98/37/EEC - machinery || 89/336/EEC - electromagnetic compatibility || 89/655/EEC - work equipment
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 6.89E-9 1/h IEC 61508
Ambient Air Temperature For Operation-30-55 °C || 14-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP65 || IP67
Ambient Air Temperature For Storage-35-70 °C || -13-158 °F
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Offer Type
- standard distance
- Emission
- IR LED 950 nm
- Topology
- daisy chain slave2
- Output Current Limits
- 0.4 A safety outputs OSSD
- Net Weight
- 1.1 kg
- Function Available
- test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
- Material
- aluminium casing || polycarbonate front panel || polypropylene end caps
- Kit Composition
- adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
- Detection System
- transmitter-receiver system
- [Eaa] Effective Aperture Angle
- 2.5 ° at 3 m
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Maximum Voltage Drop<0.5 V
MarkingCE
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
Housing Colourred RAL 3000
[Ie] Rated Operational Current2 A
Output Voltage24 V
Output Circuit TypeDC
[Us] Rated Supply Voltage24 V DC +/- 20 %
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Height Protected
- 510 mm
- Distance Between Axis
- 500 mm
- [Sn] Nominal Sensing Distance
- 0-12 m by cabling || 0-4 m by cabling
Product Or Component Typesafety light curtain type 4
Type Of Startautomatic || manual
Control Typeselected by wiring
Number Of Beams2
