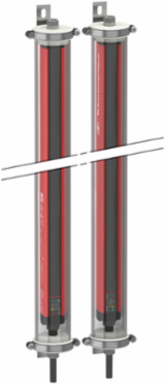

Telemecanique Sensors XUSL4E2BB051LWC Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K w/o Heating, Long Sensing Range 510 mm
Telemecanique Sensors XUSL4E2BB051LWC Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K w/o Heating, Long Sensing Range 510 mm
- MPN: XUSL4E2BB051LWC
- PPN: TES-XUSL4E2BB051LWC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2131.22/ EA
Description
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K w/o Heating, Long Sensing Range 510 mm
Specifications
Environment
- Product Certifications
- cULus || Ecolab || TÜV || CE
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 98/37/EEC - machinery || 89/655/EEC - work equipment || 89/336/EEC - electromagnetic compatibility
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 6.89E-9 1/h IEC 61508
Ambient Air Temperature For Operation-20-55 °C || 14-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP69K
Ambient Air Temperature For Storage-30-70 °C || -13-158 °F
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Offer Type
- long distance
- Emission
- IR LED 950 nm
- Maximum Voltage Drop
- <0.5 V
- Output Current Limits
- 0.4 A safety outputs OSSD
- Net Weight
- 3.81 kg
- Function Available
- test || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults || anti-condensation system
- Material
- PMMA (polymethyl methacrylate) tube || stainless steel AISI 316L sealing plug || PVC (polyvinyl chloride) Cable
- Kit Composition
- adjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM || silicone o-ring(s) || 1 PVC cable(s)
- Output Voltage
- 24 V
- Provided Equipment
- without heating system
- Output Circuit Type
- DC
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Fixing Modeby fixing brackets
Response Time2.5 ms
MarkingCE
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
Housing Colourred RAL 3000
[Ie] Rated Operational Current2 A
Type Of Cableunshielded cable AWG 22 10-10 m
Detection Systemtransmitter-receiver system
Ohmic Cable Resistance55.31 mOhm
[Eaa] Effective Aperture Angle2.5 ° at 3 m
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Height Protected
- 510 mm
- Distance Between Axis
- 500 mm
- [Sn] Nominal Sensing Distance
- 3-17 m by cabling || 0-8 m by cabling
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Control Typeselected by wiring
Number Of Beams2
Device Short NameXUSL4E
