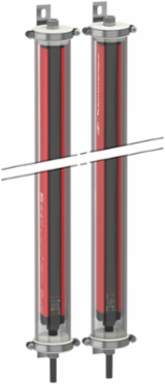

Telemecanique Sensors XUSL4E2BB051LWH Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K with Heating, Long Sensing Range 510 mm
Telemecanique Sensors XUSL4E2BB051LWH Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K with Heating, Long Sensing Range 510 mm
- MPN: XUSL4E2BB051LWH
- PPN: TES-XUSL4E2BB051LWH
- UNSPSC: 46171620
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2318.13/ EA
Description
Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL Body IP69K with Heating, Long Sensing Range 510 mm
Specifications
Environment
- Product Certifications
- cULus || TÜV || Ecolab || CE
- Shock Resistance
- 10 gn 16 ms IEC 61496-1
- Vibration Resistance
- 0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
- Directives
- 89/336/EEC - electromagnetic compatibility || 98/37/EEC - machinery || 89/655/EEC - work equipment
- Service Life
- 20 year(s)
- Safety Reliability Data
- PFHd = 6.89E-9 1/h IEC 61508
Ambient Air Temperature For Operation-30-55 °C || -13-131 °F
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Ip Degree Of ProtectionIP69K
Ambient Air Temperature For Storage-13-158 °F || -30-70 °C
Relative Humidity0-95 % without condensation
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406015EN
- Toxic Heavy Metal Free
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Circularity Profile
- ENVEOLI1406015EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
- Maximum Power
- 10 W
- Fixing Mode
- by fixing brackets
- Response Time
- 2.5 ms
- Marking
- CE
- Supply
- power supply IEC 61496-1 || power supply IEC 60204-1
- Local Signalling
- 1 multi-colour LED transmitter || 2 dual colour LEDs receiver
- Housing Colour
- red RAL 3000
- [Ie] Rated Operational Current
- 2 A
- Type Of Cable
- unshielded cable AWG 22 10-10 m
- Detection System
- transmitter-receiver system
- Ohmic Cable Resistance
- 55.31 mOhm
- [Eaa] Effective Aperture Angle
- 2.5 ° at 3 m
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Offer Typelong distance
EmissionIR LED 950 nm
Maximum Voltage Drop<0.5 V
Output Current Limits0.4 A safety outputs OSSD
Net Weight3.81 kg
Function Availabletest || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults || anti-condensation system
MaterialPMMA (polymethyl methacrylate) tube || stainless steel AISI 316L sealing plug || PVC (polyvinyl chloride) Cable
Kit Compositionadjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM || silicone o-ring(s) || 1 PVC cable(s)
Output Voltage24 V
Provided Equipmentwith heating system
Output Circuit TypeDC
[Us] Rated Supply Voltage24 V DC +/- 20 %
Specifications
- Range Of Product
- Telemecanique Safety light curtains XUSL
- Output Type
- 2 safety outputs OSSD solid-state PNP arc suppression)
- Height Protected
- 510 mm
- Distance Between Axis
- 500 mm
- [Sn] Nominal Sensing Distance
- 3-17 m by cabling || 0-8 m by cabling
Product Or Component Typesafety light curtain type 4
Type Of Startmanual || automatic
Control Typeselected by wiring
Number Of Beams2
Device Short NameXUSL4E
