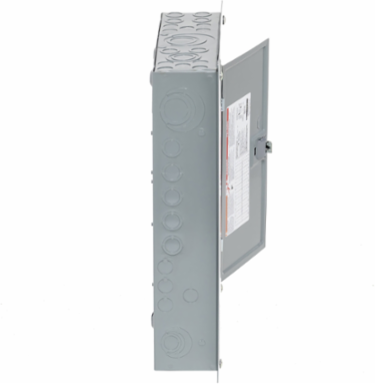

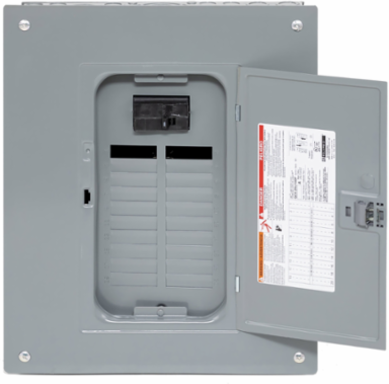

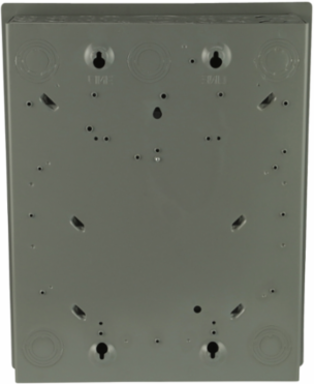

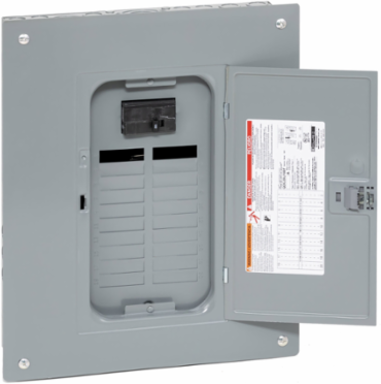

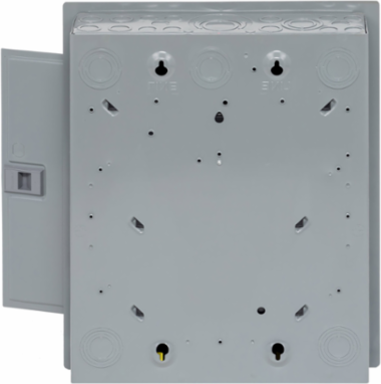

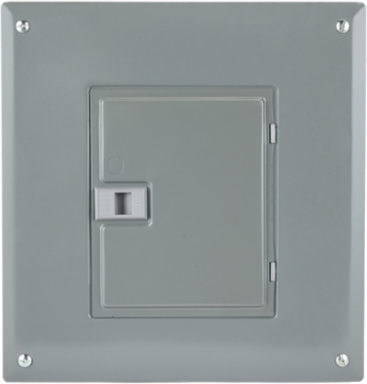

Square D QO120M100PC QO Load Center 100A 1 Phase, 20 Spaces, 24 Circuits, NEMA 1
- MPN: QO120M100PC
- UPC: 785901609483
- PPN: SCH-QO120M100PC
CAD
$801.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 20 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth95 mm
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 2.3000154903, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0275347383, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.087341
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Box Number
- 6
- Device Composition
- grounding bar (ordered separately)
- Enclosure Material
- welded sheet steel
- Installation Direction
- vertical
- Material
- tin plated copper: busbar
- Number Of Spaces
- 20
- Phase
- 1 phase 3 wires
- Product Or Component Type
- Load Center
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 37 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description

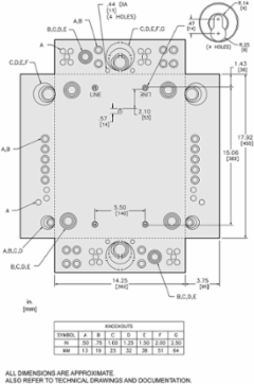

- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Tlaxcala Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Recyclability Potential In %
- 89
- Width Nominal
- 362 mm
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 7.4172
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.1052
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.1052
- Customs Code
- 8537109150
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.6356916427
Carbon Footprint Of The Manufacturing Phase [A1 To A3]34 kg CO2 eq., 34.0369993754
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2531
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Cover Typecombination flush/surface cover
Electrical Connectionlugs
Energy Efficiency OptimizedFalse

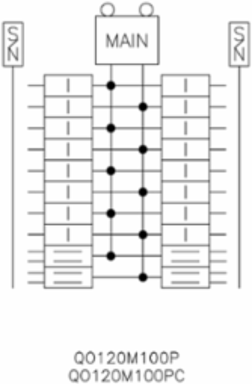

Load Center TypePoN Convertible Mains (breaker)
Number Of Circuits24
Number Of Tandem Circuit Breakers4
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipmentcover
ReturnabilityYes
Surface Finishbaked enamel Gray
Tightening TorqueCover 20 lb.in
Pep CodeENVPEP2212003EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal455 mm
Certificate AgencyUL Listed
Short-circuit Current22 kA
Package Weight(Lbs)6.804 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212003EN
- Nema Degree Of Protection
- NEMA 1 indoor enclosure
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint37.0875822467
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2212003EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase 3 wires
- Provided Equipment
- cover
Product Or Component TypeLoad Center
Range Of ProductQO
ETIM
- ETIM 8
- EC000214
ETIM 9EC000214
