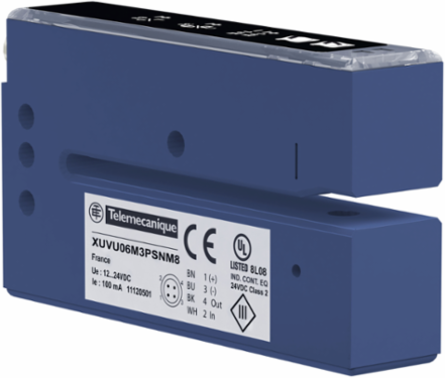

Telemecanique Sensors XUVU06M3PSNM8 Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP NO/NC connect M8
Telemecanique Sensors XUVU06M3PSNM8 Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP NO/NC connect M8
- MPN: XUVU06M3PSNM8
- PPN: TES-XUVU06M3PSNM8
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$895.30/ EA
Description
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor in a fork design with thru beam detection system. It supports 3mm thru beam nominal sensing distance and 1 NO or 1 NC programmable PNP discrete output. The photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP65 rated product. The enclosure is made of zinc alloy. Its dimensions are 18mm (width) x 47mm (depth) x 92.5mm (height). It weighs 0.13kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and cULus. The XU is for non contact sensing up to a hundred meters of objects of any shape and any type. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.
Specifications
Environment
- Product Certifications
- CE || cULus
- Vibration Resistance
- 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-70 °C
Ambient Air Temperature For Operation5-55 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Height
- 92.5 mm
- Maximum Delay Response
- 0.3 ms
- Status Led
- output state 1 LED yellow) || adjustment mode and keypad locking 1 LED red)
- Lens Material
- PC
- Net Weight
- 0.13 kg
- Minimum Distance Between Labels
- 2 mm
- Maximum Delay First Up
- 30 ms
- Minimum Label Length
- 2 mm
- Enclosure Material
- zinc alloy
- Output Type
- solid state
- Maximum Passing Speed Of Object
- 180 m/min
Switching Frequency<= 1500 Hz
Type Of Output Signaldiscrete
Setting-Upnumeric potentiometer
Maximum Voltage Drop<2 V closed state)
Accuracy+/- 0.20 mm 120 m/min
Maximum Delay Recovery0.3 ms
Supply Voltage Limits10-30 V DC
Switching Capacity In Ma<= 100 mA overload and short-circuit protection)
Width18 mm
Depth47 mm
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Passage Width
- 3 mm
- Electrical Connection
- 1 male connector M8, 4 pins
- Discrete Output Function
- 1 NO or 1 NC programmable
- Passage Depth
- 69 mm
- Sensor Name
- XUV
- Wiring Technique
- 4-wire
- Product Specific Application
- detection of transparent labels
- Sensor Design
- fork
- Electronic Sensor Type
- photo-electric sensor
Type Of Settingwith
Discrete Output TypePNP
Range Of ProductTelemecanique Photoelectric sensors XU
Emissionultrasonic
Materialmetal
Series NameApplication packaging
Detection Systemthru beam
Supply Circuit TypeDC
[Sn] Nominal Sensing Distance3-3 mm thru beam
