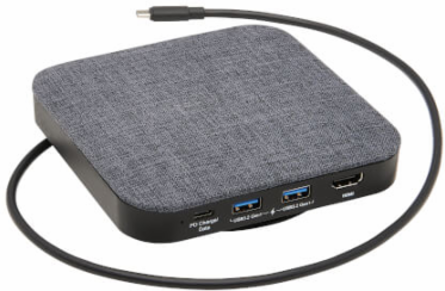

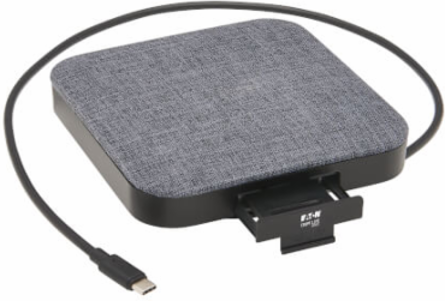

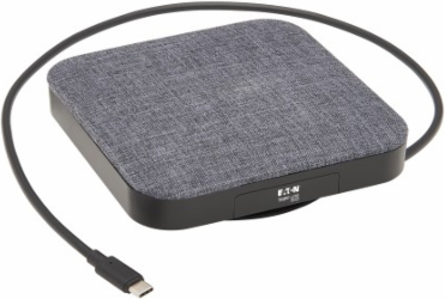

Tripp Lite U442DOCK17GY USB-C Dock with Optional Internal Hard Drive, 4K HDMI, USB 3.x (5Gbps), 100W PD Charging, Gray
- MPN: U442DOCK17GY
- UPC: 037332262288
- PPN: TRP-U442-DOCK17-GY
CAD
$74.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

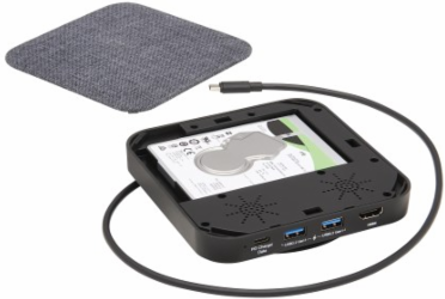

USB-C Dock with Optional Internal Hard Drive, 4K HDMI, USB 3.x (5Gbps), USB-A/USB-C Hub, SATA III, 100W PD Charging, Gray
Features
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

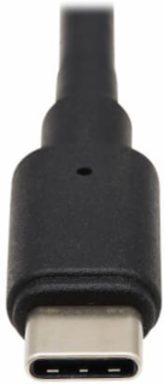

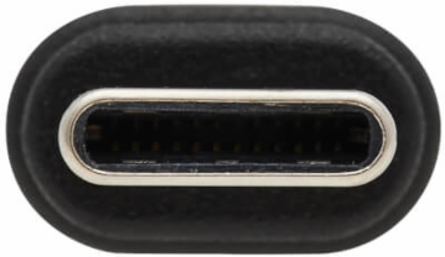

- Host Connector
- USB C (MALE)
- Data Ports
- (2) USB A (FEMALE); (1) USB C (FEMALE)
- Number of Ports
- 4
- Side A - Connector 1
- USB C (MALE)
- Side B - Connector 2
- 7-PIN SATA (FEMALE)
- Wire Gauge
- 32/22
- Unit Weight
- 0.44
Video PortsHDMI (FEMALE)
Built-In Cable Length1.9

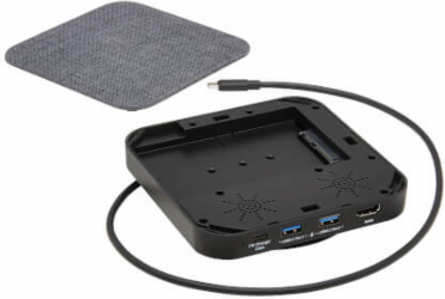

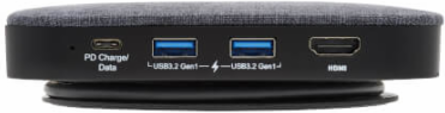

Dock ConnectorsUSB-C PD Charging/Data, (2) USB-A 3.2 Gen1, HDMI, SATA II SSD/HDD
Side B - Connector 1HDMI (FEMALE); (2) USB A (FEMALE); USB C (FEMALE)
LED IndicatorsPower (Solid White), Data Transfer (Flashes White)
Unit Dimensions5.150 x 5.150 x 1.190
Material
- Connector Plating
- Nickel
- Material of Construction
- Aluminum
ColorGray
Cable Jacket MaterialPVC
Compliance
- Cable Jacket Rating
- VW-1
TAA Compliant OptionN
Reference
- Product Type
- Docking Station
Product Warranty Period3-year limited warranty
Performance
- Technology
- HDMI; SATA/eSATA; USB 3.x
- Video Ports Details
- HDMI 2.0; HDCP 1.4; HDCP 2.2
- Battery Charging
- Yes
- Charging Method
- USB
- Charging Ports / Amps
- (2) 1.5A; (1) 5A
- Storage Temperature Range
- 14° to 122°F (-10° to 50°C)
- Storage Humidity Range
- 20% to 80% RH, Non-Condensing
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps); USB 3.2 Gen 1 (up to 5 Gbps)
- SATA Version
- SATA III (6 Gbps)
Number of Monitors Supported1
Data Ports Details(2) USB-A - USB 3.2 Gen 1 (5 Gbps); (1) USB-C - USB 3.2 Gen 1 (5 Gbps)
Total Charging Watts100
Charging Ports(2) USB-A: 5V 1.5A (7.5W); USB-C: 100W (20V 5A) Power Delivery (PD 3.0)
Operating Temperature Range41° to 95°F (5° to 35°C)
Operating Humidity Range20% to 80% RH, Non-Condensing
Number of USB Hub Ports3
Ethernet SupportNo
HDCP Specification1.4; 2.2
