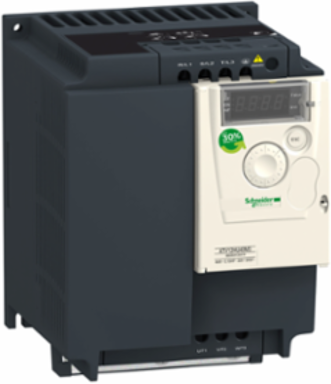

Schneider Electric ATV12HU40M3 Altivar 12 Variable Speed Drive 4kW 5hp 200-240V 3-Phase
- MPN: ATV12HU40M3
- PPN: SCH-ATV12HU40M3
CAD
$951.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Altivar 12 variable speed drive can feed 3-phase asynchronous motors in supply line connection. It works at a rated power up to 4kW / 5hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. It features underload and overload detection, this contribute to protect your installation. The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, United States
Depth141.2 mm
Communications & Management Attributes
- Communication Service
- read holding registers (03) 29 words, write single register (06) 29 wordswrite multiple registers (16) 27 wordsread/write multiple registers (23) 4/4 words, read device identification (43)
Communication Port ProtocolModbus
Complementary Attributes
- Brake Chopper Integrated
- false
- Maximum Horse Power Rating
- 5 hp
- Maximum Output Frequency
- 4 kHz
- Maximum Transient Current
- 25.0 A 60 s heavy duty)27.6 A 2 s heavy duty)
Maximum Associated Fuse Rating12.5 A
Maximum Input Current Per Phase19.9 A
Maximum Output Voltage240 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Asynchronous Motor Control Profile
- quadratic voltage/frequency ratio, voltage/frequency ratio (V/f), sensorless flux vector control
- Electromagnetic Emission
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions IEC 61800-3
- Motor Slip Compensation
- preset in factory, adjustable
- Transmission Rate
- 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
- Certificate Agency
- NOM, CSA, C-tick, UL, GOST, RCM, KC
- Environmental Class (During Storage)
- class 1C3 according to IEC 60721-3-1, class 1S2 according to IEC 60721-3-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- false
- Application In Domestic And Commercial Area Permitted
- false
- Base Load Current At High Overload
- 16.7 A
- Capacity Of Dc Link
- 1890.0 µF
- Connector Type
- 1 RJ45
- Design Of Frequency Changer
- U converter
- Frequency Resolution
- analog input converter A/D, 10 bitsdisplay unit 0.1 Hz
- Insulation
- electrical between power and control
- Marking
- CE
- Maximum Input Current Per Phase
- 19.9 A
- Motor Power Kw
- 4 kW
- Network Frequency
- 50-60 Hz
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Serial Rs485
- 1
- Operating Element Present
- true
- Optical Interface Present
- false
- Phase
- 3 phase
- Power Loss Per Device Current Dependent
- 128.0 W
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- simple machine
- Quantity Per Set
- set of 1
- Regulation Loop
- adjustable PID regulator
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Sampling Duration
- 20 ms +/- 1 ms logic input10 ms analogue input
- Speed Range
- 1-20
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.2 N.m
- Transient Overtorque
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Type Of Polarization
- no impedance
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Supply Voltage Num
- 200...240 V
- Height Nominal
- 184 mm
- [Us] Rated Supply Voltage
- 200...240 V200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.5 mm at 2...13 Hz
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- false
- With Safety Function Safely Limited Speed (Sls)
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504404000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2immunity to conducted disturbances level 3 conforming to IEC 61000-4-6radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3surge immunity test level 3 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Linearity Error+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input
Protection Typeline supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t
Vibration Resistance1 gn 13-200 Hz)IEC 60068-2-6, 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to IEC 60721-3-2, class 2S1 according to IEC 60721-3-2
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
Tier1
Function OptionStandard
1 Phase Low Current Possiblefalse
Apparent Power8.3 kVA 240 V heavy duty)
Assembly Stylewith heat sink
Braking To Standstillby DC injection
Computer Porttrue
Data Format8 bits, configurable odd, even or no parity
Emc Filterwithout EMC filter
Housing Materialplastic
Line Current23.8 A 100 V heavy duty)19.9 A 120 V heavy duty)
Maximum Associated Fuse Rating12.5 A
Method Of Accessserver Modbus serial
Mounting Modecabinet mount
Noise Level50 dB
Number Of Addresses1-247
Number Of Output Phases3
Operating Positionvertical +/- 10 degree
Overvoltage Categoryclass III
Power Dissipation In Wforced cooling 128.0 W
Power Loss Static Current Independent12.0 W
Product Or Component Typevariable speed drive
Prospective Line Isc5 kA
Range Of ProductAltivar 12
Relative Symmetric Mains Voltage Tolerance10 %
ReturnabilityYes
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Frequency50/60 Hz +/- 5 %
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Switching Frequency2...16 kHz adjustable4...16 kHz with derating factor
Time Constant20 ms +/- 1 ms for reference change
Transmission FrameRTU
Volume Of Cooling Air16.4 m3/h
With Safety Function Safe Programmable Logicfalse
Parts Quantityset of 1
Motor Power Kw 10 N Motor Power Kw4 kW
Width Nominal140 mm
Emc Limit Value (Complied)false
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
With Safety Function Safe Direction (Sdi)false
With Safety Function Safe Position (Sp)false
With Safety Function Safe Stop 1 (Ss1)false
With Safety Function Safely Limited Position (Slp)false
With Sft Fct Safe Stop 2 (Ss2)false
Package Weight(Lbs)2.444 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating 2.2 % per °C
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar 12
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 4000.0 W
- Speed Drive Output Frequency
- 0.5-400 Hz
Continuous Output Current16.7 A 4 kHz
Maximum Output Frequency4 kHz
Nominal Output Current16.7 A
Relay Output Number1
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Number
- 1
- Number Of Input Phases
- 3
Discrete Input Number4
