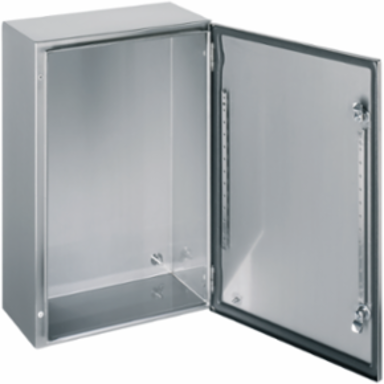

Schneider Electric NSYS3X3315H Spacial S3X Wall Mounted Enclosure, 300x300x150 mm, Stainless Steel 316L, IP66
- MPN: NSYS3X3315H
- PPN: SCH-NSYS3X3315H
CAD
$816.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robustness and reliability, the Spacial S3X wall-mounted enclosure from Schneider Electric is crafted from high-quality stainless steel 316L, making it exceptionally resistant to corrosion and harsh environmental conditions. With an ingress protection rating of IP66, this enclosure safeguards sensitive equipment from dust and water ingress, ensuring optimal performance in industrial settings. Its compact dimensions of 300x300x150 mm make it suitable for various applications within automation, control, and data communication, providing a secure housing solution that meets the demands of modern IT environments.
Documentation & Downloads
Specifications
Additional
- Number of Doors
- 1 front face
- Material
- lock zamak, stainless steel 316L (body and door), stainless steel (hinge)
- IK Degree of Protection
- IK10 IEC 62262
- Standards
- IEC 62208
- Environmental Characteristic
- corrosive, specific hygiene
- Door Opening Side
- reversible 120°
- Surface Finish
- body and door Scotch-Brite® brushed, lock chromium plated
- Dimensions
- 300 x 300 x 150 mm (W x H x D)
- Warranty
- 18 months
- RoHS Compliance
- Pro-active compliance (EU and China)
Lock Type3 mm double-bar lock
Device Applicationmulti-purpose
IP Degree of ProtectionIP66 IEC 60529
CertificationsCAN/CSA 22, UL 508 type A
Door Typeplain solid
Body Typesingle piece body, cross-shaped structure, gutter shaped front rail
Weight4.038 kg (8.90 lb)
Mountingwall-mounted
Mercury FreeYes
Country of OriginFrance
