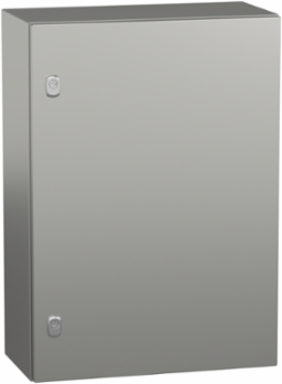

Schneider Electric NSYS3X7525H Wall Mounted Enclosure 700x500x250 mm Stainless Steel 316L IP66
- MPN: NSYS3X7525H
- PPN: SCH-NSYS3X7525H
CAD
$2333.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYS3X7525H Wall Mounted Enclosure is designed for robust protection in challenging environments, constructed from high-grade stainless steel 316L to ensure durability and resistance against corrosion. Measuring 700x500x250 mm, this enclosure is suitable for housing sensitive automation and control systems, as well as communication equipment, effectively safeguarding them from dust and water with its IP66 rating. Its wall-mounted design provides efficient space utilization, making it an ideal solution for a variety of applications in both industrial and IT settings.
Documentation & Downloads
Specifications
Additional
- Material
- Body and door stainless steel 316L, lock zamak, hinge stainless steel
- IK Rating
- IK10 IEC 62262
- Mounting Type
- Wall-mounted
- Door Type
- Plain (Solid)
- Lock Type
- 2 points lock, 3 mm double-bar
- Standards
- IEC 62208
- Environmental Characteristic
- Corrosive, specific hygiene
- Warranty
- 18 months
- Device Application
- Multi-purpose
- Accessibility For Operation
- Front
- Removable Parts
- Door by hinges
- Country of Origin
- France
IP RatingIP66 IEC 60529
Enclosure Nominal Dimensions700x500x250 mm (Height x Width x Depth)
Body TypeSingle piece body, cross-shaped structure, gutter shaped front rail
Door Opening SideReversible 120°
Surface FinishBody and door Scotch-Brite® brushed, lock chromium plated
Product CertificationsUL 508 type A, CAN/CSA 22
Sustainable Offer StatusGreen Premium product, Mercury free, RoHS compliant
Device Composition1 body, 1 door, 2 lock door, 2 perforated vertical profile drilled door
Number Of DoorsFront face 1
Mounting Plate DescriptionWithout mounting plate
Net Weight17.44 kg
