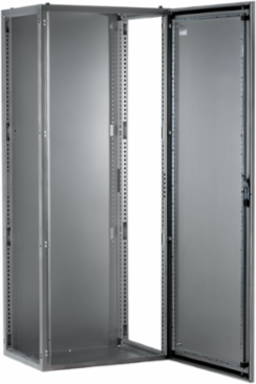

Schneider Electric NSYSFX18640 Spacial SFX 304L Stainless Steel Enclosure 1800x600x400mm, IP66, IK10
- MPN: NSYSFX18640
- PPN: SCH-NSYSFX18640
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric NSYSFX18640 Spacial SFX enclosure is expertly crafted from 304L stainless steel, providing a robust solution for housing sensitive equipment in demanding environments. With an IP66 rating, it offers exceptional protection against dust and water ingress, ensuring reliable operation even in harsh conditions. Designed for versatility, this enclosure’s dimensions of 1800x600x400mm make it suitable for a variety of applications within automation and control systems, as well as data and communication setups. The IK10 impact rating adds another layer of durability, making it an ideal choice for locations where resilience is paramount.
Documentation & Downloads
Specifications
Additional
- Number of Doors
- 1 front face
- IK Rating
- IK10 IEC 62262
- Certification
- UL
- IP Rating
- IP66 IEC 60529
- Door Opening Side
- Reversible 120°
- Installation Type
- Floor-standing
- Width
- 600 mm
- Body Type
- Single piece structure folded and welded, rear panel integrated
- Surface Finish
- Scotch-Brite® brushed enclosure, painted handle
- RoHS Exemption
- Yes
- Warranty
- 18 months
- China RoHS
- Out of scope; substance declaration provided
- Environmental Characteristic
- Specific hygiene, Corrosive
- Accessibility for Operation
- Side, Front
- Product Type
- Suitable enclosure
- Removable Parts
- Door by hinges, mounting plate bracket by screws, cable gland plate by clips
- Mounting Plate
- Without mounting plate
Lock Type3 points lock, handle with 5 mm double-bar insert
RangeSpacial
ApplicationMulti-purpose
Height1800 mm
Door TypePlain
Type of Gland PlatePlain
Net Weight80 kg
Material304L Stainless Steel structure and door, Zamak handle, Stainless Steel hinge
Depth400 mm
REACH RegulationContains Substances of Very High Concern above threshold
Device Composition1 structure, 1 locking system with handle door, 4 mounting plate bracket, 1 cable gland plate, 1 door with reinforcement frame
Product NameSpacial SFX
EU RoHSPro-active compliance, product out of EU RoHS legal scope
Environmental DisclosureENVPEP2107011EN
Circularity ProfileN/A
Mercury FreeYes
