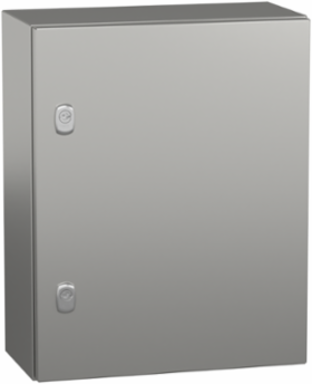

Schneider Electric NSYS3X5420H Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 500x400x200mm, IP66

Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 500x400x200mm, IP66
  • MPN: NSYS3X5420H
  • PPN: SCH-NSYS3X5420H

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$1223.22/ EA

    Description

    Wall mounted enclosure, Spacial S3X, stainless steel 316L, plain door, 500x400x200mm, IP66

    Specifications

    Environment

    Product Certifications
    CAN/CSA 22 || UL 508 type A
    Environmental Characteristic
    corrosive || specific hygiene
    Ip Degree Of Protection
    IP66 IEC 60529
    Ik Degree Of ProtectionIK10 IEC 62262
    StandardsIEC 62208

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2109018EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Complementary

    Accessibility For Operation
    front
    Type Of Gland Plate
    without gland plate
    Surface Finish
    body and door Scotch-Brite® brushed || lock chromium plated
    Lock Type
    2 points lock, 3 mm double-bar
    Net Weight
    8.106 kg
    Mounting Plate Description
    without mounting plate
    Removable Partsdoor by hinges
    Materiallock zamak || hinge stainless steel || body and door stainless steel 316L
    Body Typesingle piece body, cross-shaped structure || gutter shaped front rail
    Door Typeplain
    Door Opening Sidereversible 120 °)
    Number Of Doorsfront face 1

    Specifications

    Installation Accessory Type
    wall-mounting
    Product Name
    Spacial S3X
    Enclosure Nominal Height
    500 mm
    Device Application
    multi-purpose
    Range
    Spacial
    Product Or Component Typecompact enclosure
    Device Composition1 body || 1 door || 2 lock door
    Enclosure Nominal Depth200 mm
    Enclosure Nominal Width400 mm
