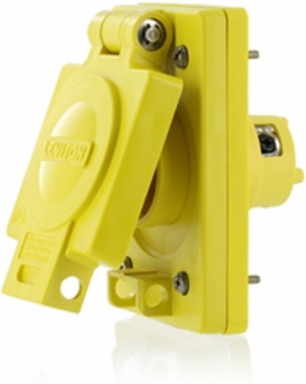

Leviton 95W07-S Wetguard Watertight Locking Outlet 15A 125/250V Industrial Grade Yellow
- MPN: 95W07-S
- UPC: 078477519530
- PPN: LEV-95W07-S
CAD
$150.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
15 Amp, 125 Volt / 10 amp, 250 Volt, Non-NEMA, 3P, 3W, Locking Single Outlet, Industrial Grade, Non-Grounding, Wetguard - YELLOW
Features
- BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
- ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
- MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
- DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL
- 498
CSAC22.2 No. 42
NOM057
WarrantyLimited Lifetime Warranty
Material Specifications
- Blades/Contacts, Terminal Clamps
- Electroless Nickel-coated Brass
- Cover/Lid
- Valox PBT
- Terminal Screws
- Electroless Nickel-coated Brass
- Wiring Module
- Nylon
Cover GasketSantoprene TPV
Mounting and Assembly ScrewsStainless steel, non-magnetic
Torsion Spring Mechanism (Flip Lids)Stainless Steel
Wiring Module Mounting CupValox PBT
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- #18 AWG to # 10 AWG
Screw Terminal Torque12-14 in-lbs
Product Features
- Brand
- Wetguard
- Device Type
- Locking Outlet
ColorYellow
Environmental Specifications
- Enclosure Rating
- NEMA 4, 4X, 12 IEC IP66
- Flammability
- Rated V-2 per UL 94 (wiring module)
EnvironmentWet
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15/10 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
