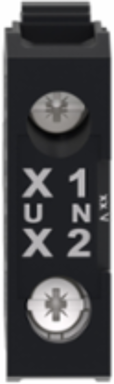

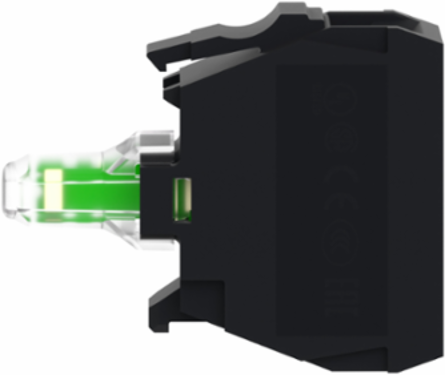

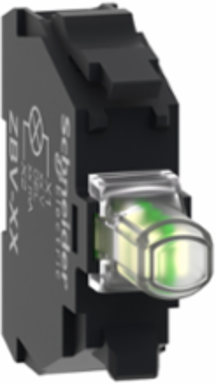

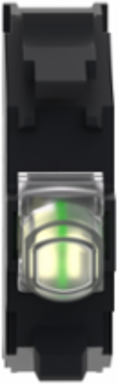

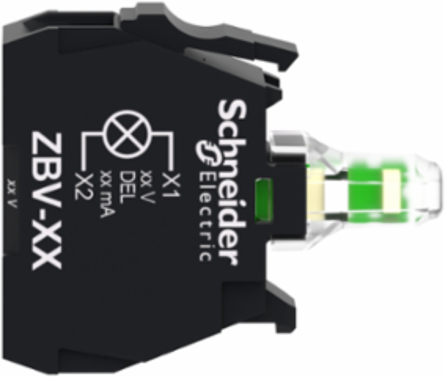

Schneider Electric ZBVM1 Harmony XB4/B5 Light Block with Universal LED, 230-240V AC, IP20, -40 to 70°C

  • MPN: ZBVM1
  • PPN: SCH-ZBVM1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $51.94

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony ZB, white light block operates with an integral LED. It is supplied with 230V to 240V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

    Features

    • The Schneider Electric ZBVM1 is a high-performance LED light block from the Harmony XB5 (plastic) and XB4 (metal) 22mm ranges. It provides the illumination source for pilot lights and illuminated push buttons. By using an integrated LED rather than a replaceable bulb, it offers superior vibration resistance and an incredibly long service life, making it a "set-and-forget" solution for Canadian industrial panels.
    • This specific block features a White LED. Because the color of the signal is typically determined by the plastic lens cap (the "head"), a white LED block is the most versatile choice. It can be paired with Green, Red, Amber, Blue, or Clear heads, allowing Canadian distributors and contractors to simplify their inventory by stocking one universal light block.
    • The ZBVM1 is designed to operate on 230V to 240V AC (50/60Hz). While 24V and 120V are common in North American automation, the 240V AC block is frequently used in Canadian pump stations, HVAC systems, and irrigation controls where the control voltage is tapped directly from a single phase of a 208V or 240V power source.
    • Despite its high brightness, the ZBVM1 draws very little current (typically less than 20mA). This low power consumption prevents "ghosting" or accidental activation caused by induced voltage in long cable runs—a common headache for electricians working in large Canadian manufacturing plants or warehouses.

    Documentation & Downloads

    Specifications

    Additional

    Voltage
    230-240 V AC 50/60 Hz
    Current Consumption
    14 mA
    Resistance to Fast Transients
    2 kV IEC 61000-4-4
    Resistance to Electromagnetic Fields
    10 V/m IEC 61000-4-3
    Operating Temperature Range
    -40 to 70 C
    Light Source Colour
    White
    Mounting
    Front mounting
    Connections - Terminals
    Screw clamp terminals, <= 2 x 1.5 mmB2 with cable end IEC 60947-1; >= 1 x 0.22 mmB2 without cable end IEC 60947-1
    Weight
    0.017 kg (0.04 lb)
    Device Presentation
    Basic element
    Certifications
    CSA Certified, UL Listed
    Supply Voltage Limits195-264 V AC
    Surge Withstand1 kV IEC 61000-4-5
    Resistance to Electrostatic Discharge6 kV on contact, 8 kV in free air IEC 61000-4-2
    Electromagnetic EmissionClass B IEC 55011
    Light SourceUniversal LED
    Signalling TypeSteady
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Head Diameter22 mm
    MaterialTH protection treatment
    StandardsUL 508, IEC 60947-1, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-5, JIS C8201-1
