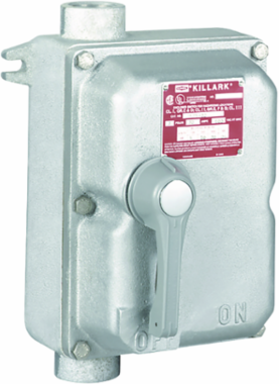

Killark XEDS-A Non-Fused Disconnect Switch Enclosure, 3 Poles, 4-1/8 Inch Depth, 8-3/4 Inch Width, Aluminum
- MPN: XEDS-A
- UPC: 783936897967
- PPN: HBL-XEDS-A
CAD
$3534.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XEDS Series, A Amp Max, Disconnect Switch Enclosure Only
Features
- External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks.
- Provisions for locking in "ON" position available as factory modification (add suffix SU40 to catalog number).
- Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).
- Cover bolts are stainless steel.
- Eaton (Cutler Hammer) Type DS Switches.
- Two cast conduit hubs, one top and one bottom.
- Internal disconnect handle mechanism is a sliding plate mounted to the cover.
- Suitable for indoor applications.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Width
- 8.75 in
- Frequency Rating
- 60 Hz
- Nema Rating
- 3R, 4, 9(E, F, G)
- Number Of Wires
- 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCLOSURE ONLY
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- CSA File Number
- LR11714
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936897967
Depth6.875 in
Height11.875 in
Weight11 lb.
Enclosure TypeBolted
Mounting TypeWall
Number Of Poles3
TypeNon-Fused Disconnect
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeR
Sub Class CodeD25D251
UL File NumberE53290
SeriesXEDS Series
BOX SIZE(in)
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
