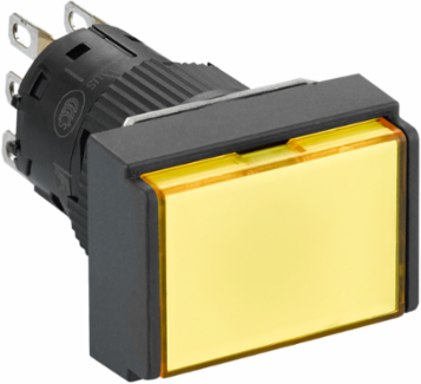

Schneider Electric XB6EDW5B1P Illuminated monolithic push button, Harmony XB6E, rectangle yellow flush, 16mm, spring return, 24V DC, 1CO
- MPN: XB6EDW5B1P
- PPN: SCH-XB6EDW5B1P
CAD
$21.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Illuminated monolithic push button, Harmony XB6E, rectangle yellow flush, 16mm, spring return, 24V DC, 1CO
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Important Information Attributes
- Certificate Agency
- cURus, CCC
- [Ith] Conventional Free Air Thermal Current
- 3 A fast connector socket), 5 A
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0015691905, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0013528767, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.1321963783
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403025EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2129
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Bezel Material
- plastic
- Contact Operation
- snap action
- Contacts Material
- gold-flashed silver
- Current Consumption
- 10 mA
- Electrical Durability
- 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
- Marking
- CE
- Mounting Diameter
- 16 mm
- Operator Profile
- yellow flush
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony XB6E
- Sale Per Indivisible Quantity
- 5
- Shape Of Signaling Unit Head
- rectangular
- Signalling Type
- steady
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential In %
- 17
- Short-circuit Protection
- 2 A cartridge fuse gG
- Package Weight(Lbs)
- 12.0 g
- Warranty (In Months)
- 18
[Ie] Rated Operational Current1.5 A 120 V, AC-12 IEC 60947-5-11 A 240 V, AC-12 IEC 60947-5-11 A 24 V, DC-12 IEC 60947-5-10.7 A 24 V, DC-13 IEC 60947-5-10.2 A 125 V, DC-12 IEC 60947-5-1, 0.15 A 125 V, DC-13 IEC 60947-5-1
Connections - Terminalsinsulated faston 2.8 x 0.5 mm, solder terminal <= 0.75 mm² 19 AWG, fast connector socket
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0217718555
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2680722291
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility CodeXB6
Contact Resistance50 mOhm 1/6 V
Contacts Type And Composition1 C/O
Device Short NameXB6E
Light Sourceintegral LED
Mechanical Durability1000000 cycles
Operating Positionany position
Overvoltage CategoryII conforming to IEC 60536
Product Or Component Typeilluminated monolithic push-button
ReturnabilityNo
Service Life30000 h
Shock Resistance10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Vibration Resistance1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2403025EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Us] Rated Supply Voltage24 V DC polarised
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509031
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.4249625302
- Environmental Disclosure
- ENVPEP2403025EN
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2403025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2403025EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated monolithic push-button
Range Of ProductHarmony XB6E
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
