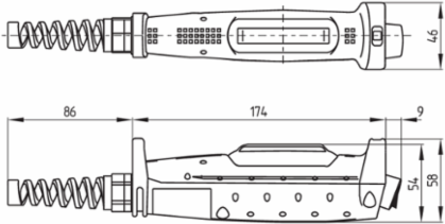

Schmersal 101199480 ZSD Safe Switching and Monitoring Module, 250 VAC, IP65, Thermoplastic Enclosure
- MPN: 101199480
- PPN: SCM-101199480
CAD
$690.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ZSD Safe Switching and Monitoring Module, 250 VAC, IP65, Thermoplastic Enclosure
Features
- 3 levels OFF-ON-OFF
- Thermoplastic enclosure
- 1 Cable entry M 20 x 1.5
- Good resistance to oil and petroleum spirit
- Particularly fit for robot applications in accordance with the ANSI Robotics Standard
- The redundant contact configuration enables signal processing using conventional safety relay modules
- Contacts do not close upon reset (level 3 -> level 1)
Documentation & Downloads
Specifications
Electrical data
- Rated operating voltage
- 250 VAC
- Switching element
- NO contact, NC contact
- Switching frequency
- 1,200 /h
Operating current3,000 mA
Switching principleSlow action
Material of the contacts, electricalSilver
Note
- Note (General)

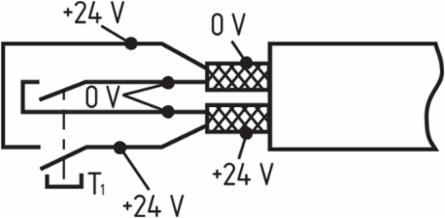

- Customer-specific versions, with connecting cable, are available upon request. | The monitoring module must offer the possibility of cross-wire monitoring. | Only a double shielded cable is authorised as supply line. | 1) If the device is to be used in a damp room, a suitable connection cable must be used. | 1) This device has been tested for impact and fire resistance according to UL508.
Ambient conditions - Insulation values
- Rated impulse withstand voltage U
- 1.5 kV
General data - Features
- Push button, additionally
- Yes
- Number of normally open (NO)
- 4
Number of normally closed (NC)1
General data
- Standards
- ANSI/RIA R15.06 | CSA C22.2 Nr.14 | EN IEC 60947-5-1 | EN IEC 60204-1 | EN IEC 60947-1 | EN ISO 11161 | EN ISO 12100 | JIS C8201-5-1 | UL508 1
- Gross weight
- 180 g
Enclosure materialPlastic, thermoplastic, self-extinguishing
Ambient conditions
- Degree of protection
- IP65
Ambient temperature-10 ... +60 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 1.5 mm²
Cable section, minimum0.14 mm²
Mechanical data
- Note (Mechanical life)
- NO: | Stage 1 - 2 - 1: 1,000,000 operations | Stage 1 - 2 - 3 - 1: 100,000 operations
Accessory
- Recommended safety switchgear
- SRB, 2-channel with cross-wire detection
Approvals - Standards
- Certificates
- cULus
