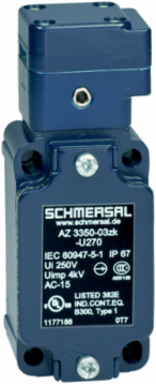

Schmersal 101214052 Safety Switch AZ 3350-03ZK, IP67, 40.5 mm x 114 mm x 38 mm, 3 Safety Contacts
- MPN: 101214052
- PPN: SCM-101214052
CAD
$177.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safety Switch AZ 3350-03ZK, IP67, 40.5 mm x 114 mm x 38 mm, 3 Safety Contacts
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Latching handle
- Long life
- 40,5 mm x 114 mm x 38 mm
- High level of contact reliability with low voltages and currents
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 10 A
- Switching element
- Opener (NC)
- Switching frequency
- 1,200 /h
Required rated short-circuit current1,000 A
Switching principleSlow action
Material of the contacts, electricalSilver

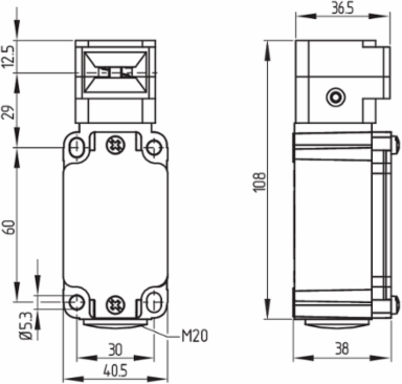

Mechanical data - Dimensions
- Length of sensor
- 38 mm
- Height of sensor
- 114 mm
Width of sensor40.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features

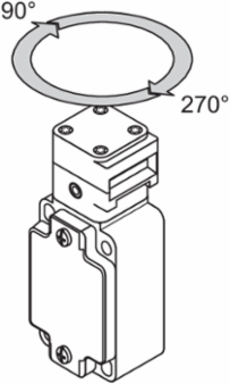

- Number of actuating directions
- 1

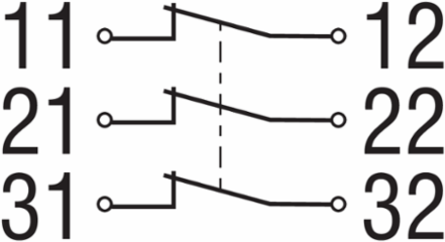

- Number of safety contacts
- 3
Number of cable glands1
General data
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Enclosure coating material
- painted
Coding level according to EN ISO 14119Low
Enclosure materialAluminium
Gross weight245 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -40 °C
Ambient temperature-30 ... +90 °C
Storage and transport temperature, maximum+90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals | Screw terminals M20 x 1.5
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Cable entry1x M20
Cable section, maximum2.5 mm²
Allowed type of cablesolid single-wire | solid multi-wire | flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break travel
- 10.7 mm
- Actuating speed, maximum
- 0.2 m/s
Shearing force15,000 N
Positive break force per NC contact, minimum5 N
MountingScrews
Accessory
- Recommendation (actuator)

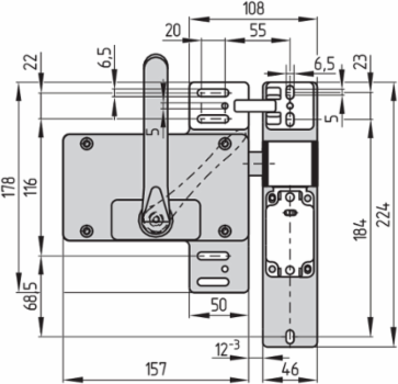

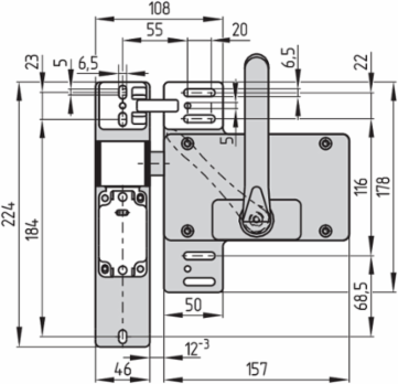

- AZ 3350-B1 | AZ 3350-B5 | AZ 3350-B1R | AZ 3350-B5R | AZ 3350-B6 | AZ 3350-B6H
Approvals - Standards
- Certificates
- cULus
