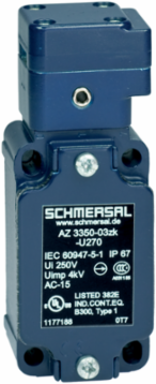

Schmersal 101214053 Safety Switch AZ 3350-12ZUEK, IP67, 40.5 x 114 x 38 mm, 230 VAC
Schmersal 101214053 Safety Switch AZ 3350-12ZUEK, IP67, 40.5 x 114 x 38 mm, 230 VAC
- MPN: 101214053
- PPN: SCM-101214053
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$177.37/ EA
Description
Safety Switch AZ 3350-12ZUEK, IP67, 40.5 x 114 x 38 mm, 230 VAC
Features
- 1 Cable entry M 20 x 1.5
- Metal enclosure

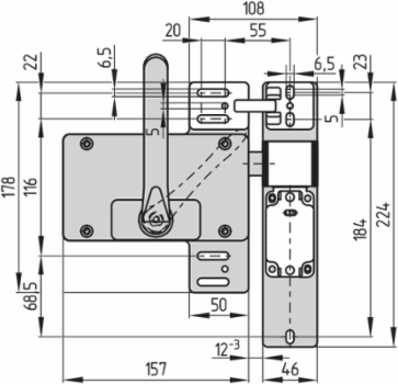

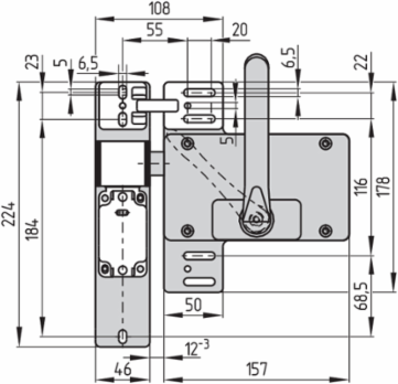

- Latching handle
- Long life
- 40,5 mm x 114 mm x 38 mm
- High level of contact reliability with low voltages and currents
Specifications
Electrical data
- Thermal test current
- 10 A

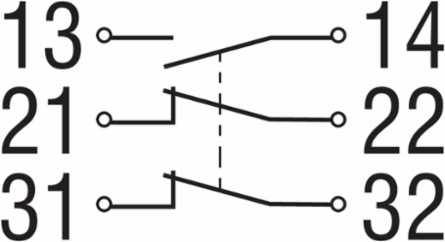

- Switching element
- NO contact, NC contact
- Switching frequency
- 1,200 /h
Required rated short-circuit current1,000 A
Switching principleSlow action with overlapping contacts
Material of the contacts, electricalSilver

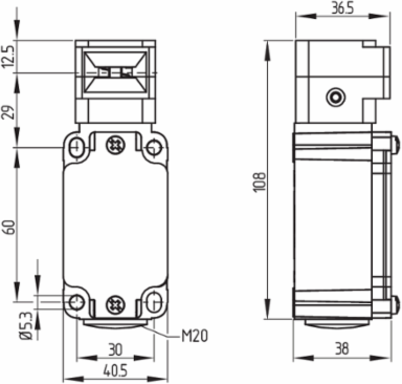

Mechanical data - Dimensions
- Length of sensor
- 38 mm
- Height of sensor
- 114 mm
Width of sensor40.5 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 250 VAC
Rated impulse withstand voltage U4 kV
Electrical data - Safety contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 2,000,000 Operations
- Note (B
- at 10% I | and ohmic load
B1,000,000 Operations
General data - Features

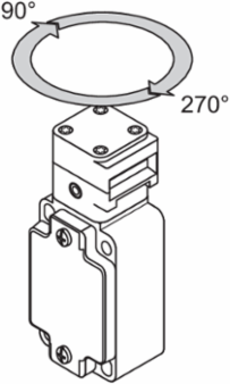

- Number of actuating directions
- 1
- Number of cable glands
- 1
Number of auxiliary contacts1
Number of safety contacts2
General data
- Standards
- BG-GS-ET-15 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-1
- Working principle
- electromechanical
- Enclosure coating material
- painted
Coding level according to EN ISO 14119Low
Enclosure materialAluminium
Gross weight250 g
Electrical data - Auxiliary contacts
- Voltage, Utilisation category AC-15
- 230 VAC
- Voltage, Utilisation category DC-13
- 24 VDC
Current, Utilisation category AC-154 A
Current, Utilisation category DC-134 A
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -40 °C
Ambient temperature-30 ... +90 °C
Storage and transport temperature, maximum+90 °C
Mechanical data - Connection technique
- Termination
- Screw terminals | Screw terminals M20 x 1.5
- Cable section, minimum
- 0.75 mm²
- Note (Cable section)
- All indications including the conductor ferrules.
Cable entry1x M20
Cable section, maximum2.5 mm²
Allowed type of cablesolid single-wire | solid multi-wire | flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Positive break travel
- 10.7 mm
- Actuating speed, maximum
- 0.2 m/s
Shearing force15,000 N
Positive break force per NC contact, minimum5 N
MountingScrews
Accessory
- Recommendation (actuator)
- AZ 3350-B1 | AZ 3350-B5 | AZ 3350-B1R | AZ 3350-B5R | AZ 3350-B6 | AZ 3350-B6H
Approvals - Standards
- Certificates
- TÜV | cULus
