Tripp Lite

Tripp Lite PDUMV15 1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.

1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.
  • MPN: PDUMV15
  • UPC: 037332225078
  • PPN: TRP-PDUMV15

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$344.33/ EA

Description

1.44kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 48 in.

Features

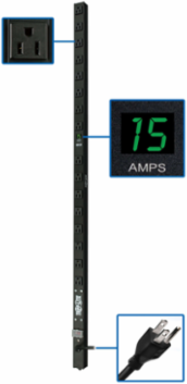

  • Metered single phase 15A 120V 0U 48in / 122cm vertical rackmount PDU

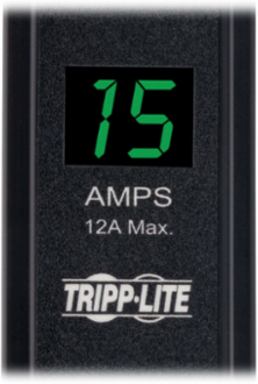

  • Two-digit current meter reports output current in amps

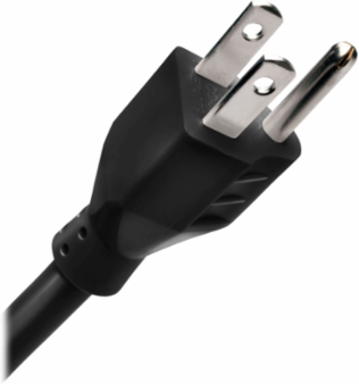

  • Attached 15ft / 4.5m cord with NEMA 5-15P input plug

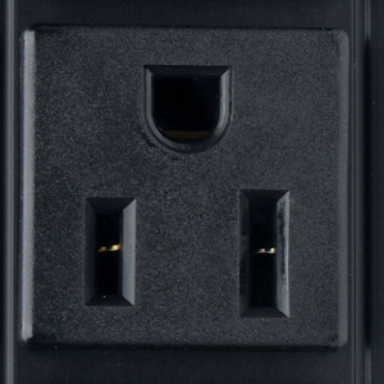

  • 16 NEMA 5-15R outlets

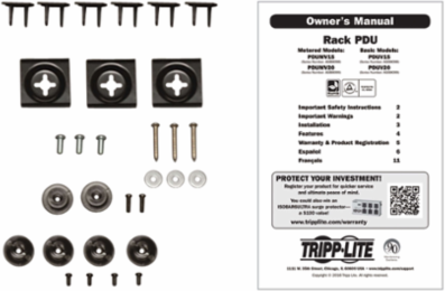

  • Toolless button mount and bolt-down bracket installation hardware included
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL 60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014 (Canada), RoHS Compliant

Physical

Form Factors Supported
Vertical (0U) mounting in rack enclosures
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
4.43
Unit Weight (lbs.)
3.74
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)51.77 x 3.43 x 2.40
Unit Dimensions (hwd / in.)48.47 x 1.5 x 1.64

User Interface, Alerts & Controls

Front Panel LCD Display
Digital meter reports PDU output current in amps
SwitchesLighted on/off switch with transparent switch cover

Input

PDU Input Voltage
100; 120; 127
Maximum Input Amps
15
PDU Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
Recommended Electrical Service15A 120V
Maximum Input Amps DetailsAgency de-rated to 12A continuous
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(16) 5-15R
Overload Protection
15A circuit breaker
Output Capacity Details1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A); 12A max per outlet
Output Nominal Voltage100; 120; 127

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% Non-condensing

Overview

UPC Code
037332225078
PDU TypeMetered

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
